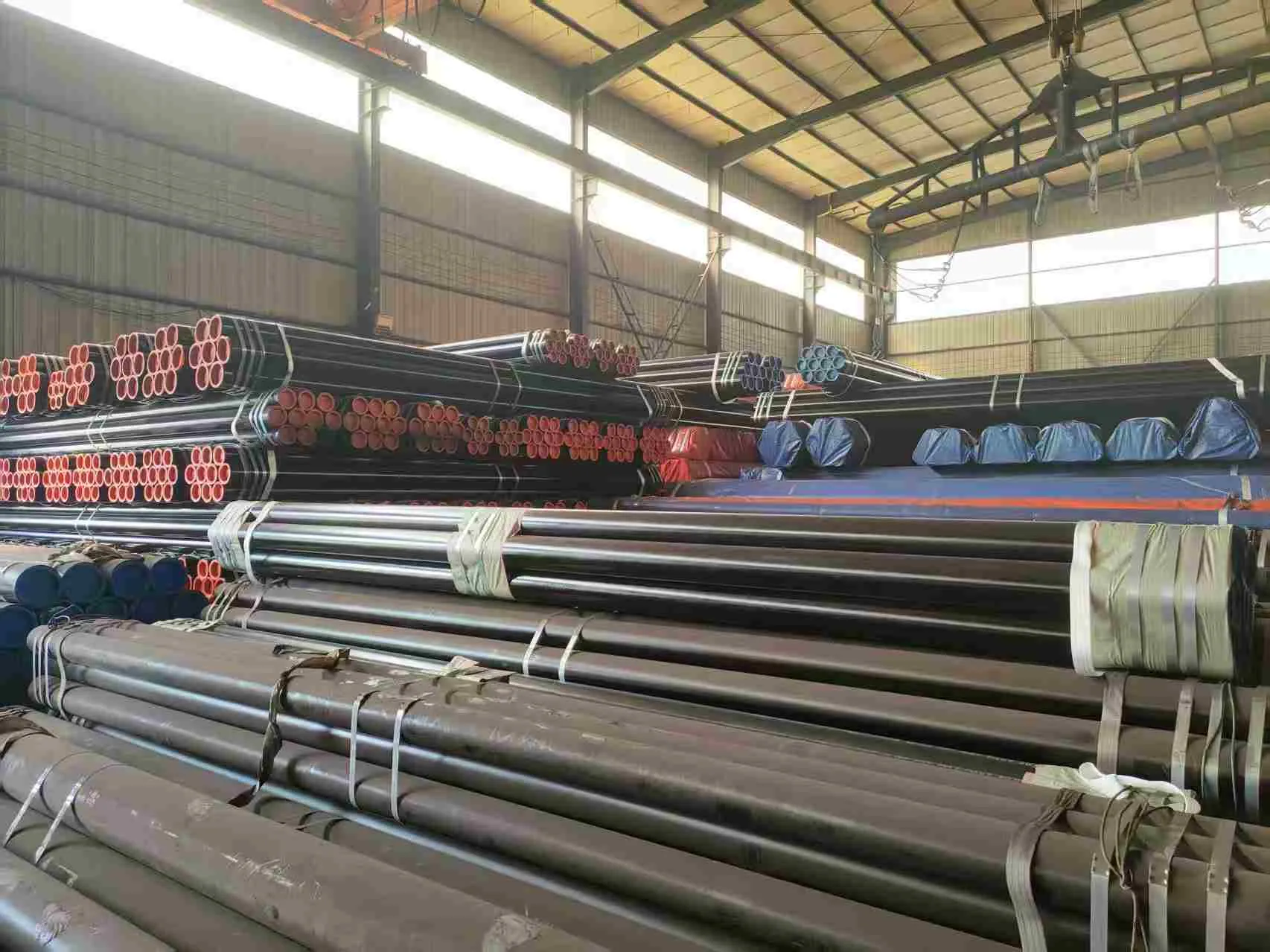

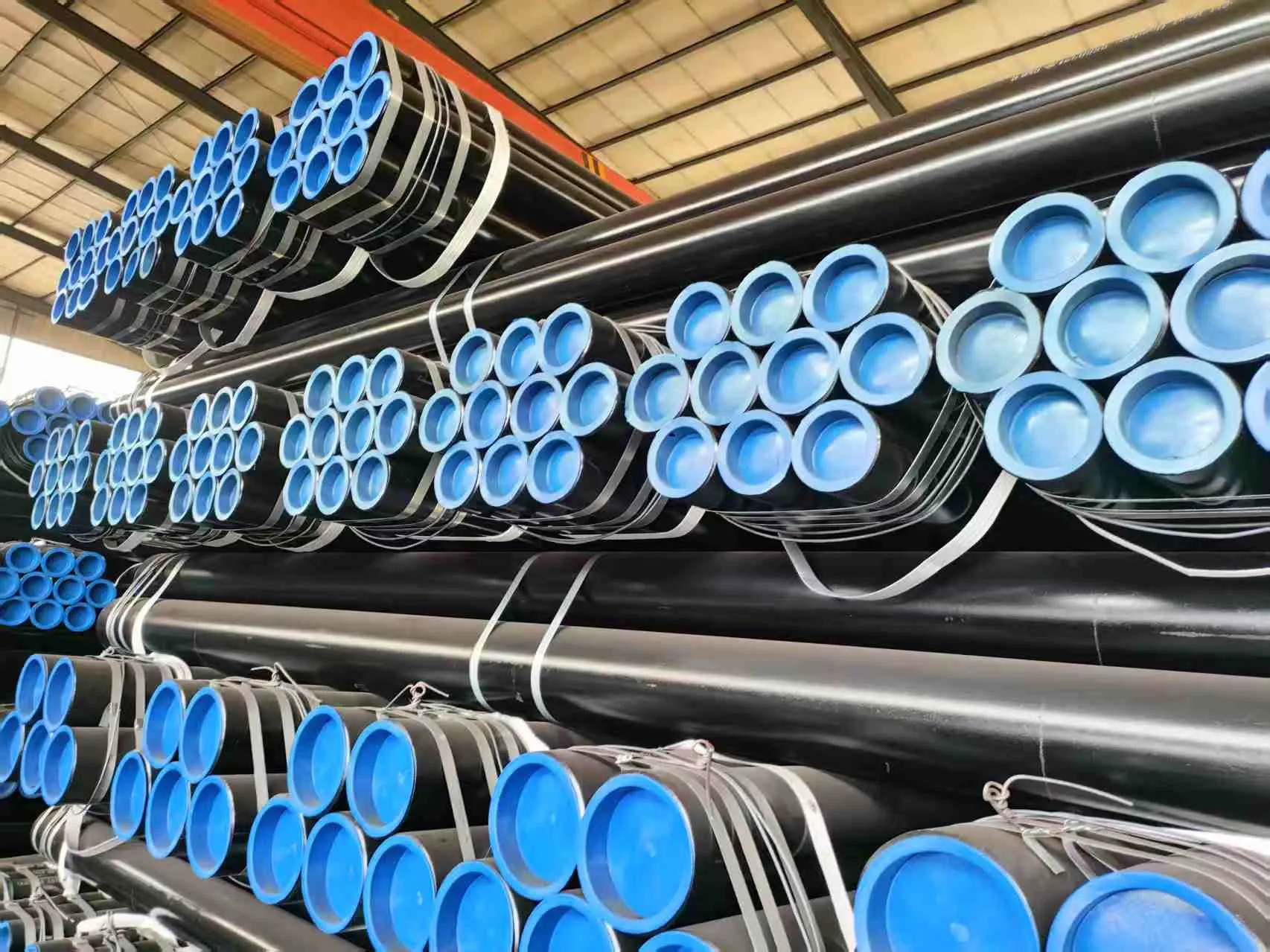

API 5L X46 Pipe

Key Characteristics:

1. 1.Material Composition:
2. - API 5L X46 pipes are made from carbon steel and may include various alloying elements to enhance performance characteristics.
3. - Typical chemical composition may include:
4. - Carbon (C): ≤ 0.20%
5. - Manganese (Mn): 1.20% - 1.60%
6. - Phosphorus (P): ≤ 0.025%
7. - Sulfur (S): ≤ 0.025%
8. - Silicon (Si): ≤ 0.40%
9. 2. Mechanical Properties:
10. - Yield Strength: Minimum yield strength of 46,000 psi (317 MPa).
11. - Tensile Strength: Typically ranges from 63,000 psi to 83,000 psi (434 MPa to 572 MPa).
12. - Elongation: Varies with pipe thickness, often in the range of 20% to 23%.
13. 3. Dimensions and Specifications:
14. - API 5L X46 pipes come in a variety of sizes and wall thicknesses.
15. - Nominal pipe sizes (NPS) typically range from ½ inch to 48 inches or larger.
16. - Wall thickness is classified into various schedules (e.g., Schedule 40, Schedule 80) based on strength and pressure requirements.
17. 4. Manufacturing Process:
18. - Pipes can be produced through seamless or welded methods:
19. - Seamless: Offers higher strength and is free of weld seams.
20. - Welded: Commonly produced from flat steel plates or coils and welded longitudinally.
21. - Conformance to strict standards ensures consistently high-quality production, including methods for non-destructive testing (NDT).
22. 5. Coatings and Finishes:
23. - API 5L X46 pipes may come with various coatings to enhance corrosion resistance, including:
24. - Bare steel (uncoated)
25. - Fusion Bond Epoxy (FBE)
26. - Three-Layer Polyethylene (3LPE)
27. - Three-Layer Polypropylene (3LPP)
28. 6. Applications:
29. - Primarily used in the oil and gas industry for transporting natural gas, oil, and other fluids through pipelines.
30. - Suitable for water distribution systems and conveyance of various industrial fluids.
31. - Used in high-pressure applications where additional strength is critical.
32. 7. Standards and Compliance:
33. - API 5L X46 pipes meet various international standards and codes, ensuring quality and reliability in high-pressure and high-temperature applications.
34. - Additional compliance with ISO and ASTM standards may be required depending on the specific project.
35. 8. Testing and Quality Control:
36. - Pipes undergo stringent testing protocols, which may include:
37. - Hydrostatic tests to check for leaks under pressure.
38. - Non-destructive tests (such as ultrasonic or radiographic examinations) to assess structural integrity.
39. - Mechanical tests to verify yield and tensile properties.
40.
41. Summary:
42. API 5L X46 pipes are high-strength carbon steel pipes designed for challenging environments, making them suitable for a broad range of applications in the oil and gas sector, water infrastructure, and other industrial uses. With a minimum yield strength of 46,000 psi, they provide the durability and reliability needed for transporting fluids under high pressure. When selecting API 5L X46 pipes, considerations should include pipe size, wall thickness, coating options, and compliance with industry standards to ensure that they perform effectively in their intended application. Regular maintenance and testing are also important for ensuring long-term performance and safety.
