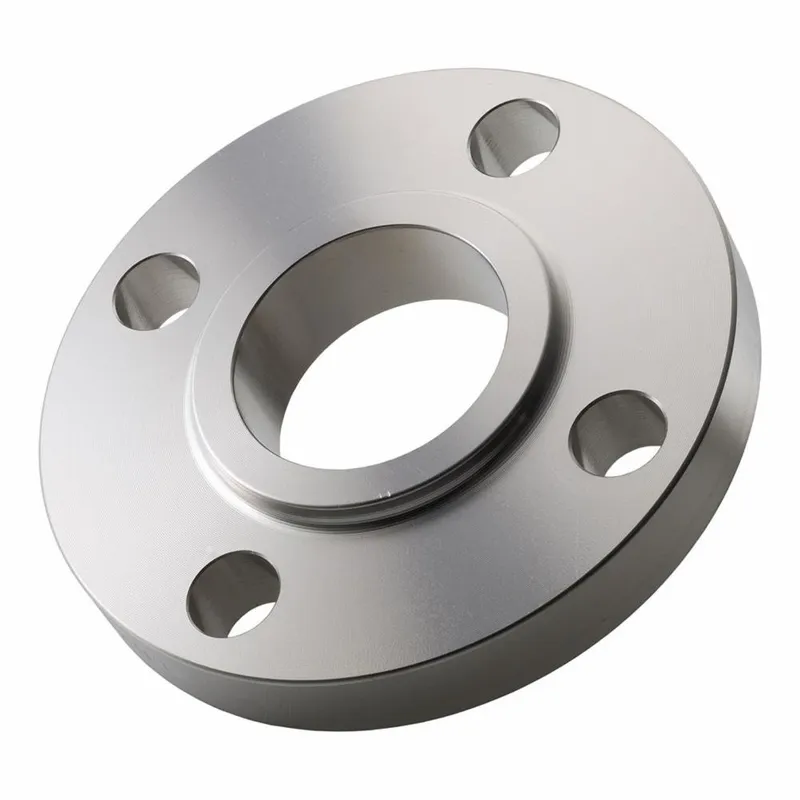

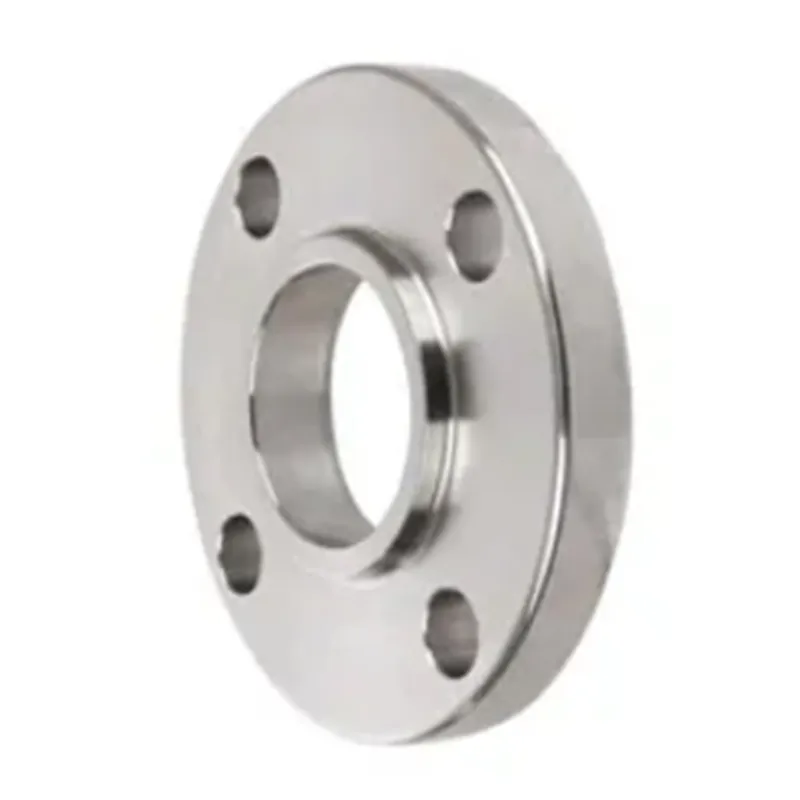

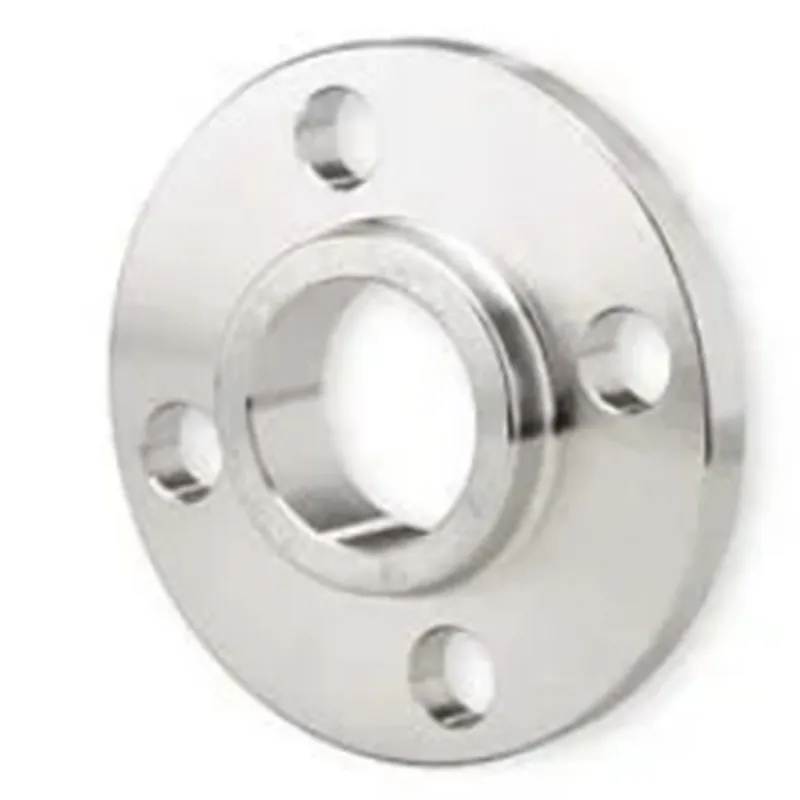

BS 4504 Slip-On Flanges are a type of flange specified in the British Standard BS 4504, which outlines the requirements for steel flanges used in piping systems. Slip-On flanges are commonly used in various industries to connect pipes, valves, and other equipment, providing a secure and leak-proof joint. Here is an introduction to BS 4504 Slip-On Flanges:
- 1.Design and Construction:
- - BS 4504 Slip-On Flanges are designed to be easily fitted over the end of a pipe, making installation and alignment straightforward.
- - These flanges feature a raised face and a ring or hub on the face to improve alignment and provide additional strength to the joint.
- - Slip-On flanges are attached to the pipe by welding, creating a solid connection that can withstand pressure and temperature variations.
- 2. Pressure Ratings:
- -BS 4504 classifies slip-on flanges into different pressure classes based on their design pressure and temperature ratings.
- - The pressure classes in BS 4504 range from PN 6 to PN 64, with each class designed to withstand specific pressure levels.
- - It is crucial to select the appropriate pressure class of slip-on flange based on the operating conditions of the piping system.
- 3. Materials and Standards:
- -BS 4504 Slip-On Flanges are manufactured from various materials such as carbon steel, stainless steel, and alloy steel, depending on the application requirements.
- - These flanges are designed to meet the dimensional standards and specifications set forth in BS 4504 to ensure compatibility and interchangeability with other components in the piping system.
- - BS 4504 Slip-On Flanges are subject to quality control measures to ensure they meet the necessary standards for reliability and performance.
- 4. Applications:
- - BS 4504 Slip-On Flanges find applications in a wide range of industries, including oil and gas, petrochemical, water treatment, and power generation.
- - These flanges are used to connect pipelines, valves, and equipment, providing a strong and secure joint that can withstand high pressures and temperatures.
- - BS 4504 Slip-On Flanges are suitable for both internal and external pressure applications, making them versatile components in piping systems.
- In summary, BS 4504 Slip-On Flanges are essential components in piping systems, offering a reliable and efficient means of connecting pipes and ensuring the integrity of industrial processes. These flanges are designed to meet stringent standards and requirements, providing a robust sealing solution for a wide range of applications.
