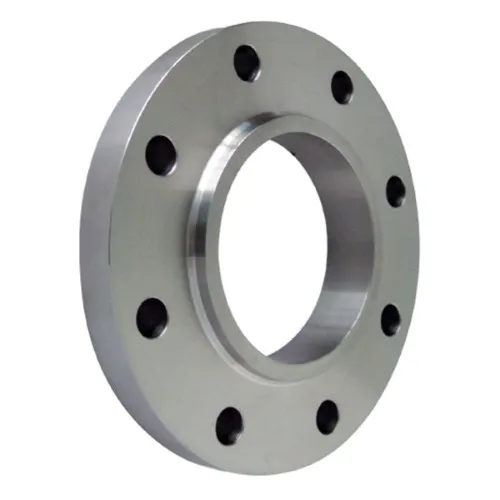

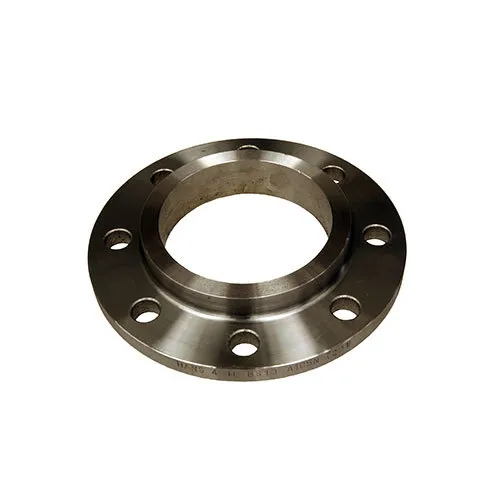

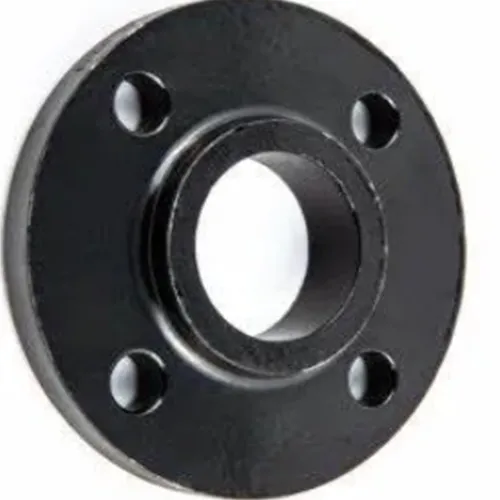

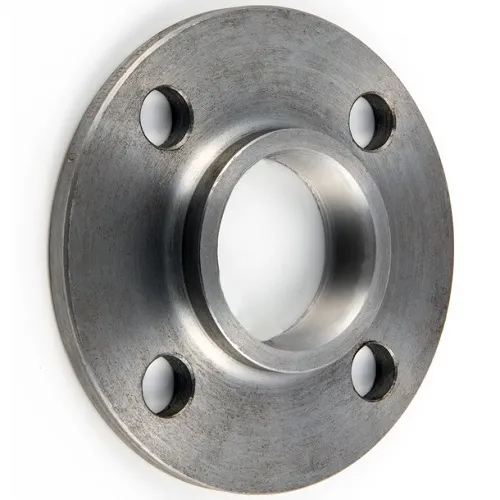

BS10 SLIP-ON TABLE D/E/F/H

BS (British Standard) 10 Slip-On flanges are a commonly used type of flange in piping systems. The designation "Table D/E/F/H" refers to the pressure ratings and dimensions of these flanges according to the BS10 standard.

CONTACT NOW PDF DOWNLOAD

1.BS10 Slip-On Table D Flanges:
- Table D flanges have lower pressure ratings compared to other tables.
- These flanges are typically used in low-pressure applications.
- The dimensions and drilling pattern of Table D flanges are specified by BS10 standards.
- They are easy to install and are commonly used in non-critical piping systems.
2. BS10 Slip-On Table E Flanges:
- Table E flanges have higher pressure ratings compared to Table D.
- These flanges are suitable for medium-pressure applications.
- They provide a secure and reliable connection between pipes in various industrial settings.
- Table E flanges conform to specific dimensions and drilling specifications as per the BS10 standard.
3. BS10 Slip-On Table F Flanges:
- Table F flanges have even higher pressure ratings than Table E.
- These flanges are used in systems that require a higher level of pressure containment.
- They are designed to withstand more demanding operating conditions.
- Table F flanges have specific dimensions and drilling patterns according to BS10 standards.
4. BS10 Slip-On Table H Flanges:
- Table H flanges have the highest pressure ratings among the BS10 tables.
- They are used in high-pressure applications where strong connections are essential.
- Table H flanges are designed to handle extreme pressures and critical industrial settings.
- The dimensions and drilling specifications for Table H flanges are defined by the BS10 standard.
In summary, BS10 Slip-On flanges in Tables D, E, F, and H offer varying pressure ratings and are selected based on the specific requirements of the piping system. These flanges provide a reliable connection between pipes, valves, and equipment in a wide range of industrial applications.
