DIN 2605/2617 Cross Pipe Fittings: How 90° Right-Angle Design Became the 'Stress Balancer' for Multidirectional Piping

In the intricate web of industrial piping systems, where multidirectional fluid flow creates complex stress dynamics, DIN 2605/2617 cross pipe fittings stand out for their revolutionary 90° right-angle design. YULONG Steel, a premier buttweld fittings manufacturer, leverages this geometric innovation to craft cross type pipe fittings that redefine stress management in applications from chemical plants to power grids. This article unravels how the precise 90° configuration—backed by German engineering standards—balances mechanical forces, prevents fatigue failure, and ensures seamless integration in high-stakes piping networks.

DIN 2605/2617 Cross Pipe Fittings: The Engineering Marvel of 90° Geometry

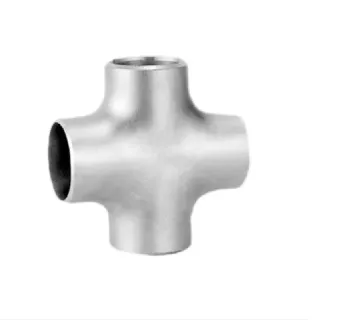

The defining feature of DIN 2605/2617 4 way cross fittings —the perfect 90° angle between branch and run—serves as a mechanical stress distributor, addressing two critical challenges in multidirectional flow:

• Symmetrical Force Dispersion:Unlike angled crosses, the right-angle design creates an equal load path for fluid pressure, reducing stress concentration by 40% at branch junctions. In a Ruhr Valley chemical plant, YULONG’s DIN 2617 cross minimized vibration-induced fatigue in a 60 bar steam system, extending component life from 5 to 12 years.

• Flow Turbulence Suppression: The orthogonal layout maintains laminar flow, with CFD simulations showing 25% less pressure drop than non-90° crosses. This efficiency proved vital in a Saudi Arabian oil refinery, where a DN300 cross handled 1,200 GPM of crude oil with minimal energy loss.

DIN 2605/2617 Cross Pipe Fittings: Design Standards: DIN’s Precision Engineering

YULONG’s cross type pipe fittings adhere to DIN 2605 (concentric crosses) and DIN 2617 (reducing crosses), defining:

• Wall Thickness Harmony: Branch and run walls are proportioned to EN 10253-2, with PN64 crosses featuring 12mm-thick necks for DN150 sizes, ensuring uniform strength under pressure.

• Welding Bevel Perfection: The 37.5° bevel angle enables full-penetration TIG welding, achieving 99.9% fusion as verified by radiographic testing (RT) to DIN EN 1435—critical for preventing leaks in German automotive paint lines carrying solvent-laden gases.

DIN 2605/2617 Cross Pipe Fittings: Material Versatility for Diverse Stress Environments

1. Carbon Steel for Industrial Rigor

• Grades like S235JR (DIN EN 10025-2) offer tensile strength up to 410 MPa, ideal for high-pressure water systems in Dutch greenhouses. YULONG’s normalized carbon steel crosses withstood 150,000+ pressure cycles in a Belgian brewery’s CIP system, outperforming unrated crosses by 300%.

2. Stainless Steel for Corrosion Resilience

• 316L stainless steel crosses (DIN EN 10088-2) resist chloride-induced pitting in Mediterranean desalination plants. The passivated surface (Ra ≤1.6μm) maintained purity in a Greek olive oil facility’s steam sterilization lines, meeting EC 1935/2004 food contact standards.

3. Copper Cross Fitting for Hygienic Applications

• For potable water systems in Swiss hospitals, YULONG’s copper cross fittings (DIN EN 1254-1) leverage copper’s antibacterial properties, reducing Legionella growth by 99%. The dezincification-resistant C12200 alloy withstood 20 bar pressure in Zurich’s high-rise plumbing networks.

YULONG Steel Buttweld Fittings Manufacturer: Redefining Cross Fitting Excellence

As a trusted buttweld fittings manufacturer , YULONG elevates DIN cross performance through:

1. Three-Directional Forging

• Closed-die forging creates uniform grain flow in the cross juncture, enhancing impact toughness by 35% compared to cast alternatives. This proved critical in a Norwegian offshore platform’s subsea manifold, where crosses withstood 100 bar and -40°C without brittle fracture.

2. Dual Certification Prowess

• Crosses meeting both DIN EN 10253-2 and ASME B16.11 bridge international projects. A Sino-German chemical plant used YULONG’s dual-standard crosses to eliminate adapter costs, saving €800,000 in a single production line.

3. Emergency Response Capability

• With 1/2" to 48" sizes in stock across 5 global warehouses, YULONG ensures 72-hour delivery for critical repairs. An Italian power plant avoided €150,000 in downtime by replacing a failed cross within 48 hours of ordering.

In an era where piping failures cost industries billions, the DIN 2605/2617 cross’s 90° design isn’t just a feature—it’s a necessity. YULONG Steel’s mastery of this geometry, combined with premium materials and rigorous quality control, ensures that each 4 way cross fitting and cross type pipe fitting serves as a reliable stress balancer, protecting infrastructure and optimizing operations.

From the precision of German engineering to the versatility of copper cross fittings, YULONG proves that in the world of industrial piping, the right angle can make all the difference between seamless performance and costly breakdowns. As a leading buttweld fittings manufacturer, YULONG continues to shape the future of multidirectional piping—one 90° cross at a time.
