25mm Flange Specifications and Applications in Mechanical Engineering Systems

Understanding the Importance of a 25mm Flange in Engineering Applications

In the diverse world of engineering, particularly in the fields of piping and structural applications, flanges play an indispensable role. A flange is a mechanical component that provides a means of connecting two sections of pipe, allowing for easier assembly, disassembly, and maintenance. Among the various sizes and types available, the 25mm flange is one that is commonly utilized in numerous applications.

What is a 25mm Flange?

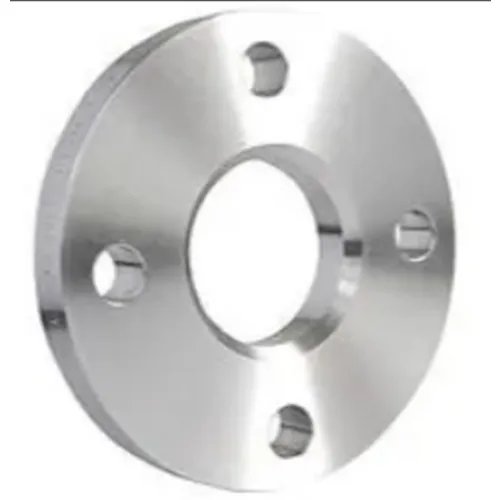

A 25mm flange refers to a flange designed to fit onto pipes or fittings with a nominal diameter of 25 millimeters. The size of a flange can influence the type of connection, the pressure ratings, and the compatibility with various materials. The 25mm designation is particularly popular in smaller piping systems, often found in water supply lines, gas pipelines, and various industrial applications where space and weight constraints are a consideration.

Types of 25mm Flanges

There are various types of flanges, and the choice largely depends on the specific application and the materials being used. Common types of flanges that can come in the 25mm size include

1. Weld Neck Flanges These flanges are designed with a long neck that allows for a gradual transition of the pipe. They are suitable for high-pressure and high-temperature applications due to their strength and ability to handle stress concentrations.

2. Slip-On Flanges These flanges are slipped over the end of a pipe and can be welded on both sides. They offer a more straightforward installation process and are ideal for lower-pressure applications.

3. Blind Flanges Used to block off the end of a piping system, blind flanges are critical in situations where a temporary closure is needed without compromising the overall integrity of the system.

4. Socket Weld Flanges Designed for direct welding to the pipe, socket weld flanges provide a smooth transition and are often used in smaller systems where rigorous pressure handling is not required.

5. Threaded Flanges These flanges are used in applications where welding is not feasible. They have internal threads that allow them to be screwed onto the pipe, making them ideal for lower pressure and less permanent connections.

The adoption of a 25mm flange in engineering applications comes with several advantages

- Space Efficiency With its compact size, the 25mm flange is perfect for installations where space is limited. It enables engineers to manage or modify piping systems without taking up excessive room.

- Cost-Effectiveness Smaller flanges typically require less material, making them more cost-effective. This aspect is particularly beneficial in applications that involve extensive piping systems, as costs can add up quickly.

- Versatility The 25mm flange can be used with a wide range of materials, including carbon steel, stainless steel, and plastic, making it adaptable to various environments.

- Ease of Maintenance Flanged connections allow for easy disassembly and reassembly, facilitating maintenance and repairs within piping systems without the need for complete replacement.

Conclusion

In summary, the 25mm flange is an essential element in the engineering landscape, especially in the pipeline industry. Its ability to provide reliable connections while accommodating space and cost considerations makes it a preferred choice for many engineers. Understanding the different types of flanges and their applications can significantly enhance the efficiency and efficacy of any piping system. As technology and engineering practices continue to evolve, the role of flanges, including the 25mm variety, will remain vital in facilitating smooth operations across countless industries.
