An Expert's Guide to Hub Blind Flange


When it comes to ensuring the safety and efficiency of high-pressure piping systems, Hub Blind Flanges are indispensable. These critical components act as sturdy endpoints, sealing pipelines during maintenance, testing, or system modifications. But not all blind flanges are created equal. At Yulong, a globally trusted manufacturer of precision-engineered flange solutions, we combine decades of expertise with cutting-edge technology to deliver flanges that outperform industry standards. In this guide, we’ll explore what makes Hub Blind Flanges unique, their applications, and how Yulong’s innovations set the benchmark for reliability.



What is a Hub Blind Flange?

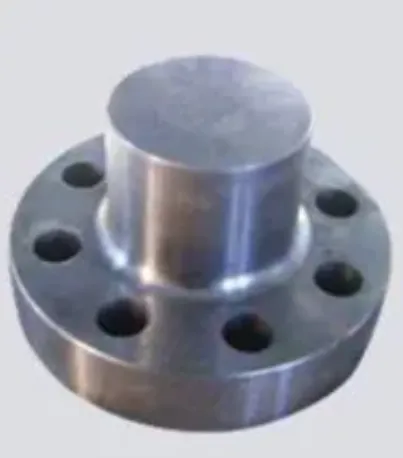

A Hub Blind Flange is a circular plate with a raised hub (also called a "boss") around the bolt-hole circle. Unlike standard blind flanges, the hub provides additional structural reinforcement, making it ideal for high-pressure and high-temperature environments. Key features include:

Raised Hub: Enhances load distribution, reducing stress on bolt holes.

Smooth Sealing Surface: Ensures leak-proof performance when paired with gaskets.

Material Versatility: Available in carbon steel, stainless steel (304/316), and exotic alloys like Inconel.

Why it matters: In industries like oil and gas or chemical processing, a failed flange can lead to catastrophic leaks. Yulong’s Hub Blind Flanges adhere to ASME B16.5/B16.47 standards, guaranteeing compliance and safety.



Key Applications of Hub Blind Flanges



Hub Blind Flanges are vital in scenarios requiring secure isolation or future system expansion.

A. Pipeline Pressure Testing

Challenge: Testing pipelines without risking leaks.

Solution: Yulong’s flanges withstand pressures up to 2,500 psi (Class 2500), validated by third-party hydrostatic tests.



B. System Maintenance and Safety

Challenge: Isolating sections during repairs without shutting down entire operations.

Solution: The hub design allows quick installation/removal, minimizing downtime.



C. High-Temperature Environments

Challenge: Thermal expansion causing flange warping.

Solution: Yulong uses ASTM A105/A182 materials with superior thermal stability.



Yulong’s Hub Blind Flange Innovations



A. Precision Engineering

Yulong’s CNC-machined flanges ensure:

  • Bolt Hole Alignment: Laser-calibrated drilling eliminates misalignment risks.

  • Surface Finish: Ra ≤ 3.2 μm for optimal gasket sealing.



B. Customization Capabilities

  • Non-Standard Sizes: Tailor flanges for NPS ½” to 60” pipelines.

  • Coatings: Epoxy, galvanized, or Xylan coatings for corrosive environments.



C. Global Certifications

  • ISO 9001:2015 quality management.

  • PED 2014/68/EU: Compliance for European markets.

  • NACE MR0175: Resistance to sulfide stress cracking in sour gas applications.



How to Choose the Right Hub Blind Flange



Follow this decision matrix to avoid costly errors:

Factor Guidance
Pressure Rating Match flange class (150, 300, 600, etc.) to system operating pressure.
Material Stainless steel is used for corrosive fluids, and carbon steel is used for cost-sensitive projects.
Face Type Raised face (RF) for general use; ring-type joint (RTJ) for ultra-high pressure.
Standards Confirm ASME, DIN, or JIS compliance based on regional requirements.

Pro Tip: Always verify flange dimensions (OD, bolt circle, thickness) against existing pipeline specs. Download Yulong’s free Hub Blind Flange Technical Spec Sheet for quick reference.



Why Engineers Trust Yulong Hub Blind Flanges



Zero-Leak Guarantee: Rigorous 100% pressure testing before shipment.

Fast Delivery: 15-day lead time for standard sizes, even during peak demand.

24/7 Technical Support: Access flange engineers via chat, email, or phone.

Case Study: A Middle Eastern oil refinery reduced unplanned downtime by 40% after switching to Yulong’s custom-coated Hub Blind Flanges for seawater cooling systems.



Hub Blind Flanges FAQ



Q: Can Hub Blind Flanges be reused?


A: Yes, if undamaged. Yulong recommends inspecting sealing surfaces and bolt holes before reuse.



Q: What’s the difference between a Hub Blind Flange and a Spacer Blind Flange?


A: Spacer blinds have a hollow center for flow measurement; hub blinds are solid for complete isolation.



Q: Does Yulong provide flanges for nuclear applications?


A: Yes, we supply ASME Section III-certified flanges for nuclear power plants.



Conclusion

Hub Blind Flanges are more than just metal plates—they’re your first line of defense against operational risks. By choosing Yulong, you gain a partner committed to precision, durability, and innovation.



Ready to Upgrade Your Flange System?

📞 Contact Yulong today for a free consultation!
🌐 Explore our Hub Blind Flange catalog: https://www.ylsteelfittings.com/
