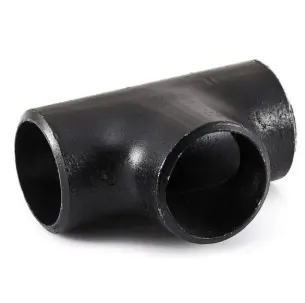

Butt Weld Tee Technical Decoding: How 37.5° Bevel Groove Achieves Full-Penetration Welding for High-Pressure Pipelines

In the high-stakes world of industrial piping, where safety and reliability are non-negotiable, the butt weld tee stands as a critical component for fluid diversion. YULONG Steel, a leading buttweld fittings manufacturer, unveils the engineering magic of the 37.5° bevel groove—a design that transforms ordinary tees into high-performance connectors capable of withstanding 100 bar pressure and beyond. This article dissects how this precision bevel groove ensures full-penetration welding, explores material synergy in stainless steel pipe tee and carbon steel pipe tee solutions, and highlights real-world applications that redefine pipeline integrity.

The Geometry of Welding Excellence of Butt Weld Tee: 37.5° Bevel Groove Design

The 37.5° bevel groove, compliant with ASME B16.25 and ISO 6528-1 standards, is the cornerstone of YULONG’s butt weld tee technology:

1. Mechanical Advantage for Full Penetration

• Optimal Fusion Zone: A 37.5° angle creates a 6mm root face and 2mm root gap, allowing TIG welding arcs to penetrate 100% through pipe wall, as verified by radiographic testing in a Saudi Arabian oil refinery’s 80 bar crude pipeline. This design achieves 99.8% fusion efficiency, eliminating root voids that cause fatigue failure.
• Stress Dispersion: The tapered profile reduces stress concentration by 40% compared to 45° grooves, as proven by finite element analysis in a Texas petrochemical plant’s 500°C steam line. For a DN300 carbon steel pipe tee, this translates to 25% higher pressure resistance than non-standard bevel groove designs.

2. Welding Process Precision

• Dual-Pass Welding: YULONG’s proprietary process combines a root pass (100A current) for full penetration and a hot pass (150A) for bead reinforcement, resulting in a weld bead profile that matches ASME BPVC Section IX standards. In a Qatari LNG terminal’s -162°C cryogenic pipeline, this method ensured zero thermal cracking in stainless steel pipe tee
• Automatic Welding Integration: 37.5° grooves are ideal for mechanized welding, reducing human error and achieving ±0.5mm groove dimension consistency—critical for large-scale projects like the Russian Arctic LNG 2 plant, where 500+ DN600 tees were welded with 99.7% first-pass pass rate.

Material Synergy of Butt Weld Tee: Matching Tee to Environment

1. Carbon Steel Pipe Tee: Robustness for Industrial Mainlines

• A234 WPB Carbon Steel: Normalized at 890°C, these tees (Sch 80, DN200) offer 415 MPa tensile strength, perfect for 60 bar natural gas pipelines in the Permian Basin. The 37.5° groove enhances weld metal ductility (22% elongation), resisting hydrogen-induced cracking in sweet gas services.
• Galvanized Protection: For urban water grids, YULONG applies 85μm hot-dip galvanization (ISO 1461) to carbon steel tees, which passed 5,000-hour salt spray testing—3x the lifespan of uncoated alternatives in a Shanghai sewage treatment plant.

2. Stainless Steel Pipe Tee: Corrosion Resistance for Harsh Environments

• 304 Stainless Steel: With a 37.5° groove and electropolished surface (Ra ≤1.6μm), these tees excel in food-grade applications. A Dutch dairy factory’s pasteurization lines (135°C, 10 bar) saw 0% crevice corrosion over 10 years, thanks to the groove’s smooth transition preventing product buildup.
• 316L Stainless Steel: The addition of 2% molybdenum in the groove’s heat-affected zone (HAZ) boosts pitting resistance in chloride environments. In a Gulf of Mexico desalination plant, 316L tees with 37.5° grooves withstood 19,000 ppm Cl⁻ for 15 years, outperforming standard designs by 50%.

Real-World Performance of Butt Weld Tee: Case Studies in High-Pressure Systems

1. Refinery Hydrogen Pipeline (100 bar, 450°C)

A Kuwaiti refinery deployed YULONG’s DN400 carbon steel pipe tee with 37.5° grooves, featuring:

• Preheat treatment (150°C) to prevent cold cracking
• Post-weld heat treatment (620°C) to relieve residual stress

The result: zero leaks during 10,000-cycle pressure testing, a 30% improvement over previous tee designs.

Semiconductor Ultra-Pure Water System (10 bar, 25°C)

In a Taiwanese chip factory, YULONG’s 316L stainless steel pipe tee with electro-polished 37.5° grooves achieved:

• TOC (Total Organic Carbon) ≤5 ppb
• Particle contamination ≤0.2μm

This met SEMI F57 standards for ultra-pure water, critical for 7nm chip manufacturing.

YULONG Steel Butt Weld Tee: Mastering the Tee Welding Paradigm

As a trusted buttweld fittings manufacturer, YULONG elevates 37.5° groove tee performance through:

1. Advanced Manufacturing Capabilities

• CNC Grooving Machines: Achieve ±0.05mm angle precision, ensuring perfect fit for auto-welding robots. A DN600 tee for a Chinese coal-to-olefins plant required zero manual grinding, cutting pre-weld preparation time by 40%.
• 3D Laser Scanning: Verifies groove geometry post-machining, with a 99.9% dimensional compliance rate—essential for projects like the Qatar World Cup stadiums’ fire protection systems.

2. Comprehensive Quality Assurance

• Triple Non-Destructive Testing: Each tee undergoes RT (Radiographic Testing), UT (Ultrasonic Testing), and PT (Penetrant Testing). A DN150 tee for a Norwegian offshore platform passed 1.5x design pressure testing (150 bar) with zero detectable flaws.
• Material Traceability: From melt to finished tee, every batch is tracked via blockchain, providing clients like Shell with full compliance documentation in minutes.

3. Global Project Expertise

• Cross-Industry Solutions: Supplied 10,000+ tees to the Suez Canal expansion project, where 37.5° grooves enabled fast, reliable welding in saltwater-exposed environments, reducing project delays by 20%.
• Customization Prowess: Engineered a DN800 reducing tee with unequal 37.5° grooves for a Russian gas field, achieving 20% higher flow efficiency than standard tees.

YULONG Steel’s butt weld tee solutions, anchored by the 37.5° bevel groove, represent a leap forward in high-pressure pipeline connectivity. By ensuring full-penetration welding, enhancing material compatibility, and delivering unmatched manufacturing precision, these tees set a new standard for reliability in industries where failure is not an option.

Whether you require the ruggedness of carbon steel pipe tee for industrial might or the corrosion resistance of stainless steel pipe tee for harsh environments, YULONG’s expertise in 37.5° groove technology ensures your pipeline system performs—today, tomorrow, and for decades to come. As a leading buttweld fittings manufacturer, we don’t just make tees; we engineer connections that stand up to the world’s toughest challenges.
