Understanding 6-Inch ANSI 150 Flanges Specifications and Applications

Flanges are critical components in piping systems, enabling the easy connection, disconnection, and maintenance of pipes, valves, and other equipment. Among the various types of flanges, the 6-inch ANSI 150 flange stands out due to its widespread usage in various industrial applications. This article aims to provide an overview of the specifications, materials, and applications of the 6-inch ANSI 150 flange.

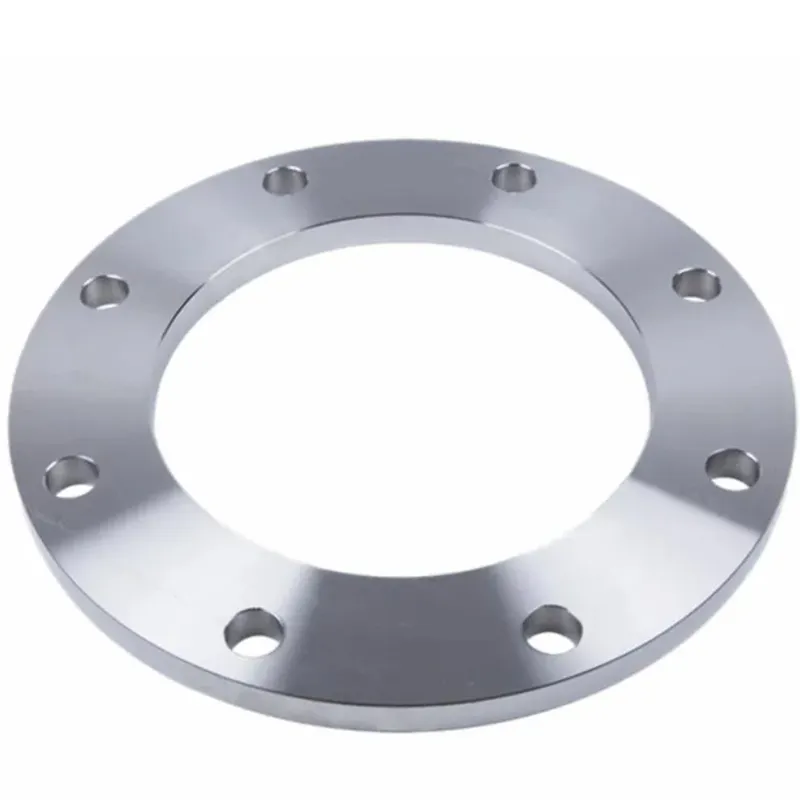

One of the most notable aspects of the 6-inch ANSI 150 flange is its dimensions and design. According to ANSI/ASME B16.5 standards, this flange typically features a smooth face for optimal sealing, though there are options for raised faces as well. The bolt hole circle diameter and the number of bolt holes are also standardized to ensure compatibility with various piping systems.

Materials used for manufacturing 6-inch ANSI 150 flanges vary based on the application and environmental conditions. Common materials include carbon steel, stainless steel, and alloy steel. Carbon steel flanges are often used in general applications due to their high strength and availability. Stainless steel flanges, on the other hand, are preferred in corrosive environments due to their excellent resistance to oxidation and rust.

In terms of applications, the versatility of the 6-inch ANSI 150 flange allows it to be used across multiple industries. It is commonly found in oil and gas, chemical processing, water treatment, power generation, and HVAC systems. The flange's pressure rating and various material options make it suitable for handling liquids, gases, and slurries in different operational scenarios.

When selecting a 6-inch ANSI 150 flange, several factors need to be considered, including the nature of the fluid being transported, pressure, temperature, and compatibility with existing piping systems. Proper installation and adherence to maintenance practices are crucial to ensuring the reliability and safety of the entire piping system.

In conclusion, the 6-inch ANSI 150 flange is a vital component in the fluid control environment, offering durability and flexibility across various applications. Understanding its specifications, materials, and suitable uses can significantly impact the efficiency and longevity of piping systems in industrial settings. Whether one is designing new systems or maintaining existing ones, the 6-inch ANSI 150 flange remains a fundamental choice for engineers and contractors alike.
