From Basics to Advanced-Understanding the Intricacies of DIN86044 Flange Specifications

In the intricate world of industrial piping systems, flanges play a pivotal role in ensuring secure and leak-free connections. Among the numerous flange standards available globally, the DIN 86044 flange stands out for its unique specifications and applications. YULONG Steel, a renowned flange manufacturer, has mastered the art of producing high-quality DIN 86044 flanges, catering to the diverse needs of industries worldwide.​

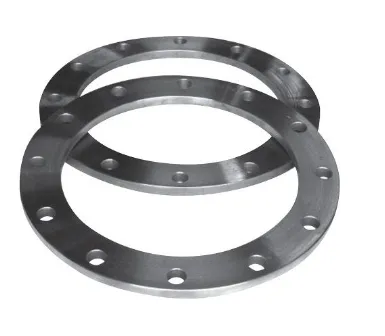

The Basics of DIN 86044 Flange

The DIN 86044 flange standard is a German-originated specification that has found widespread use in various industrial sectors. It is designed to provide a reliable connection between pipes, valves, and other components in a piping system. One of the fundamental aspects of the DIN 86044 flange is its precise dimensions. The DIN 86044 flange dimensions are carefully defined to ensure compatibility with different pipe sizes and wall thicknesses. This standardization allows for easy interchangeability of flanges in the field, reducing installation time and costs.​

For instance, the bolt hole patterns and diameters in DIN 86044 flanges are specified to match the corresponding bolts and nuts, ensuring a tight and secure fit. The flange face types, such as flat face, raised face, or tongue-and-groove face, are also clearly defined in the DIN 86044 flange standard. Each face type has its own advantages and is suitable for different applications. For example, a raised face flange is often preferred in high-pressure applications as it provides a better sealing surface.​

Different Types of Flanges Used in Piping and How DIN 86044 Fits In

In the realm of piping, there are several different types of flanges used, including slip-on flanges, weld-neck flanges, blind flanges, and socket-weld flanges. The DIN 86044 standard encompasses a variety of these flange types, each with its own set of specifications.​

Slip-on DIN 86044 flanges are relatively easy to install. They are designed to slide over the end of a pipe and are then welded in place. This type of flange is commonly used in low-pressure applications where cost-effectiveness and ease of installation are key factors. Weld-neck DIN 86044 flanges, on the other hand, have a tapered hub that is butt-welded to the pipe. This design provides excellent strength and is suitable for high-pressure and high-temperature applications, as it can better withstand the stresses and strains in such environments.​

Blind DIN 86044 flanges are used to close the ends of pipes. They are often used for inspection, maintenance, or when a section of the pipeline needs to be isolated. Socket-weld DIN 86044 flanges are used for small-diameter pipes and are socket-welded to the pipe, providing a strong and leak-proof connection.​

YULONG Steel's Expertise in DIN 86044 Flange Production

​

YULONG Steel, as a leading flange manufacturer, has a state-of-the-art production facility dedicated to manufacturing DIN 86044 flanges. Our team of experienced engineers and technicians strictly adheres to the DIN 86044 flange standard throughout the production process.​

We use high-quality raw materials, sourced from reliable suppliers, to ensure the durability and performance of our flanges. The manufacturing process involves advanced machining techniques to achieve the precise DIN 86044 flange dimensions. Each flange undergoes rigorous quality control checks, including dimensional inspections, material testing, and non-destructive testing such as ultrasonic and radiographic testing.​

Moreover, YULONG Steel offers customization options for DIN 86044 flanges. We understand that different projects may have unique requirements, and we are able to tailor the flanges according to specific customer needs. Whether it's a special material grade, a customized flange face type, or a specific bolt-hole pattern, YULONG Steel has the capabilities to meet these demands.​

Applications of DIN 86044 Flanges

​

DIN 86044 flanges find extensive applications in various industries. In the oil and gas industry, they are used in pipelines for transporting crude oil, natural gas, and refined products. The high-pressure and corrosive nature of these substances require flanges that can withstand harsh conditions, and DIN 86044 flanges, with their robust construction and strict quality standards, are well-suited for such applications.​

The chemical industry also heavily relies on DIN 86044 flanges in its complex piping systems. These flanges are used to connect pipes that carry a wide range of chemicals, ensuring safe and leak-free transportation. In power generation plants, DIN 86044 flanges are used in steam and water pipelines, contributing to the efficient operation of the plant.​

Understanding the intricacies of DIN 86044 flange specifications is crucial for anyone involved in industrial piping systems. YULONG Steel, with its expertise in manufacturing high-quality DIN 86044 flanges, offers a reliable solution for industries worldwide. Whether you are in need of standard or customized DIN 86044 flanges, YULONG Steel is your go-to flange manufacturer. Contact us today to learn more about our products and how we can meet your piping connection needs.
