Hub Flange vs Blind Flange

In the realm of piping and industrial applications, different types of flanges used in piping are essential components that facilitate the connection and sealing of pipes and equipment. Among the various types of flanges available, the hub flange and blind flange are two prevalent designs that serve different functions. This blog post delves into the characteristics, advantages, and applications of both hub flanges and blind flanges, helping you make informed decisions for your projects.

What is a Hub Flange?

A hub flange is a type of flange that features a protruding hub or neck which aids in the alignment and positioning of the flange during installation. This design enhances the rigidity of the joint and effectively accommodates the stresses that occur in piping systems. Hub flanges are predominantly used in applications that require precise alignment, making them ideal for high-pressure and high-temperature environments.

Key Characteristics of Hub Flanges

1. Design: Hub flanges come with a cylindrical extension, or hub, that connects to the pipe or equipment. This design not only strengthens the connection but also allows for easier alignment during installation.

2. Material: Hub flanges can be manufactured from a variety of materials, including carbon steel, stainless steel, and plastic. The choice of material depends on the specific requirements of the application, such as temperature, pressure, and corrosion resistance.

3. Pressure Rating: Different pressure ratings are available for hub flanges, making them versatile for numerous applications, ranging from low to high-pressure systems.

Applications of Hub Flanges

Hub flanges are commonly used in various industries, including:

- Oil and Gas: In the oil and gas sector, hub flanges are utilized for connecting pipelines and ensuring a secure and leak-proof system.
- Water Treatment: These flanges are employed in water treatment facilities to connect pipes and equipment, guaranteeing the integrity of the system under pressure.
- Chemical Processing: Hub flanges provide the necessary strength and stability required for the transportation of chemicals, minimizing the risk of leaks or failures.

What is a Blind Flange?

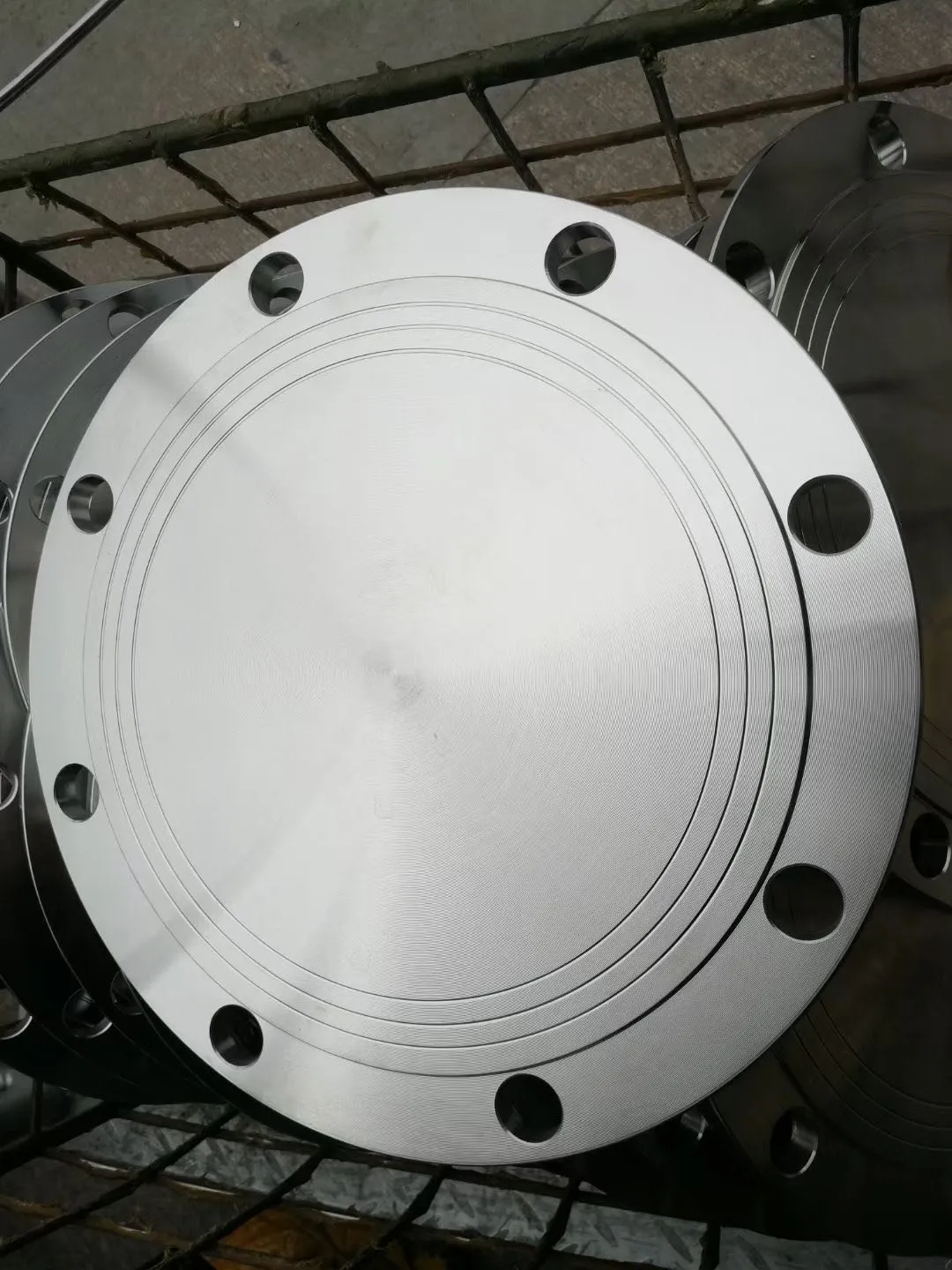

A blind flange is a flat flange with no central hole, designed to seal the end of a piping system. It serves as a closure for pipes and vessels, providing a secure seal to prevent fluid flow. Blind flanges are critical in situations where future connections may be required, or where a piping line needs to be temporarily closed off.

Key Characteristics of Blind Flanges

1. Design: The distinguishing feature of a blind flange is its solid face, which makes it ideal for blocking off pipe ends or vessels. This allows for a tight seal that is important in maintaining pressure and preventing leaks.

2. Material: Similar to hub flanges, blind flanges can be made from various materials. The choice of material is crucial to ensure compatibility with the fluid being contained and the operating conditions.

3. Sizes and Pressure Ratings: Blind flanges are available in multiple sizes and pressure ratings, ensuring they can cater to the needs of diverse applications.

Applications of Blind Flanges

Blind flanges find utility in several industries, such as:

- Piping Systems: Used to cap off the ends of pipelines, blind flanges help isolate sections of piping for maintenance or repair.
- Storage Tanks: Storage tanks, provide an effective closure to prevent leaks and maintain pressure.
- Safety Systems: Blind flanges are used in safety applications to ensure that systems can be decommissioned or isolated from pressure without compromising safety.

Hub Flange vs Blind Flange: A Comparative Overview

Understanding the differences between hub flanges and blind flanges is crucial for selecting the right type for your project. Here’s a comparative overview:

| Feature       | Hub Flange                                   | Blind Flange                               |
| Design        | Contains a hub for alignment          | Solid face, no hole                     |
| Function      | Joins two pipes or equipment         | Seals off the end of a pipe          |
| Applications | Common in high-pressure systems | Used to isolate sections of piping |
| Strength     | Provides additional strength            | Creates a secure seal                 |

Both hub flanges and blind flanges play pivotal roles in piping systems across various industries. The hub flange's unique design enhances alignment and strength, making it suitable for high-stress applications. In contrast, the blind flange's ability to seal off pipe ends makes it indispensable in maintenance and safety applications. Understanding the characteristics and applications of these flanges allows engineers and project managers to select the appropriate type for their specific needs, ensuring safety and efficiency in their operations.

In conclusion, whether you're working with hub flanges or blind flanges, knowing when and how to use each can significantly impact the reliability and performance of your piping systems.
