Introduction to Common Pipe Fittings

Pipe fittings refer to pipe fittings that are required to change the direction, elevation or pipe diameter in the piping system, as well as to lead branch pipes from the main pipe. Since the shapes of pipe systems vary from simple to traditional, there are many types of threaded sanitary fittings. Commonly used pipe fittings include elbows, tees, reducers, pipe joints, pipe caps, etc.

Elbow

Elbows are used to change the direction of pipes. The bending angles of commonly used elbows are 90°, 45° and 180°. The 180° elbow is also called a U-shaped elbow. There are also elbows with special angles, but they are very few.

Seamless Elbow

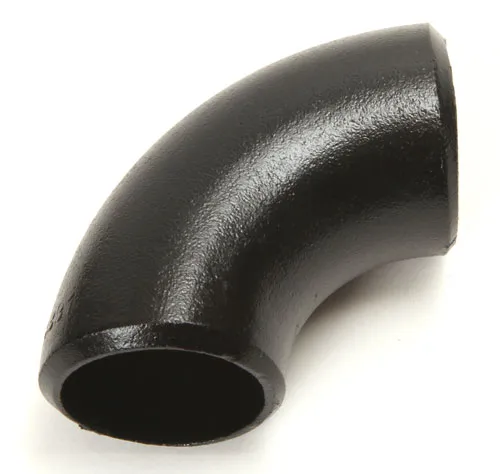

seamless elbows, are made of high-quality carbon steel, and are pressed and formed in a special mold. The bending radius is one and a half times the nominal diameter (R = 1.5DN). In special occasions, an elbow with a bending radius equal to the nominal diameter (R = 1DN) can also be used. Its specification range is within DN20~600mm. Its wall thickness range is consistent with the table number of seamless steel pipe. Seamless elbows are generally stamped from standard seamless steel pipes by professional manufacturers or processing plants. Both ends of the elbow should be grooved before leaving the factory.

Stamping and Welding Elbow

Stamping and welding elbows are made by stamping a plate into a half-ring elbow through a mold, and then the two half-ring elbows are assembled and welded to form. The bending radius is the same as that of seamless pipe elbow, and the specification range is more than 200 mm in nominal diameter.

Welding Elbow

Welding elbow, also called shrimp waist or shrimp body elbow,.

High-Pressure Elbow

High-pressure elbows are forged from high-quality carbon steel or low-alloy steel. According to the pipe connection form, both ends of the elbow are processed into threads or grooves. The processing precision is very high. It is required that the pipe mouth thread and the flange mouth thread be closely matched and freely screwed in without loosening. It is suitable for petrochemical pipelines with pressures of 22.0 and 32.0MPa. Common specifications range from DN6 to 200 mm.

Tee

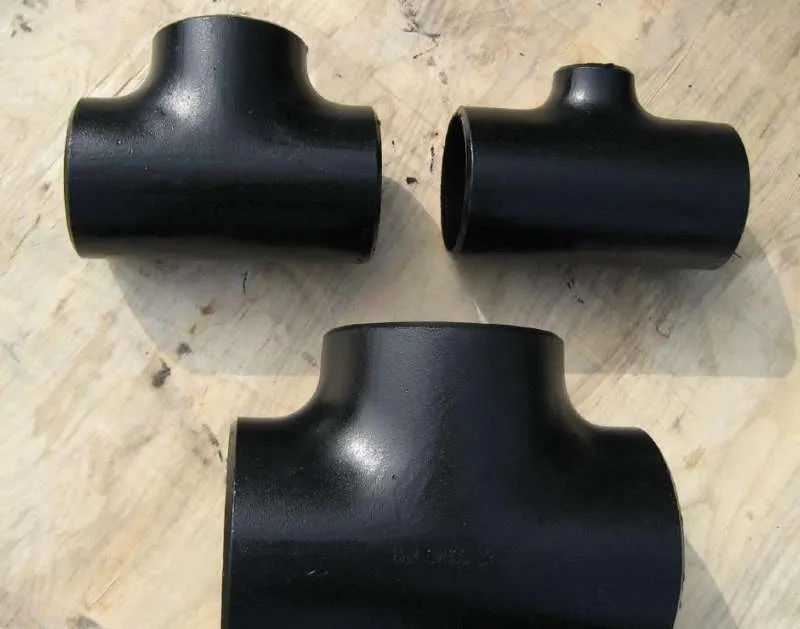

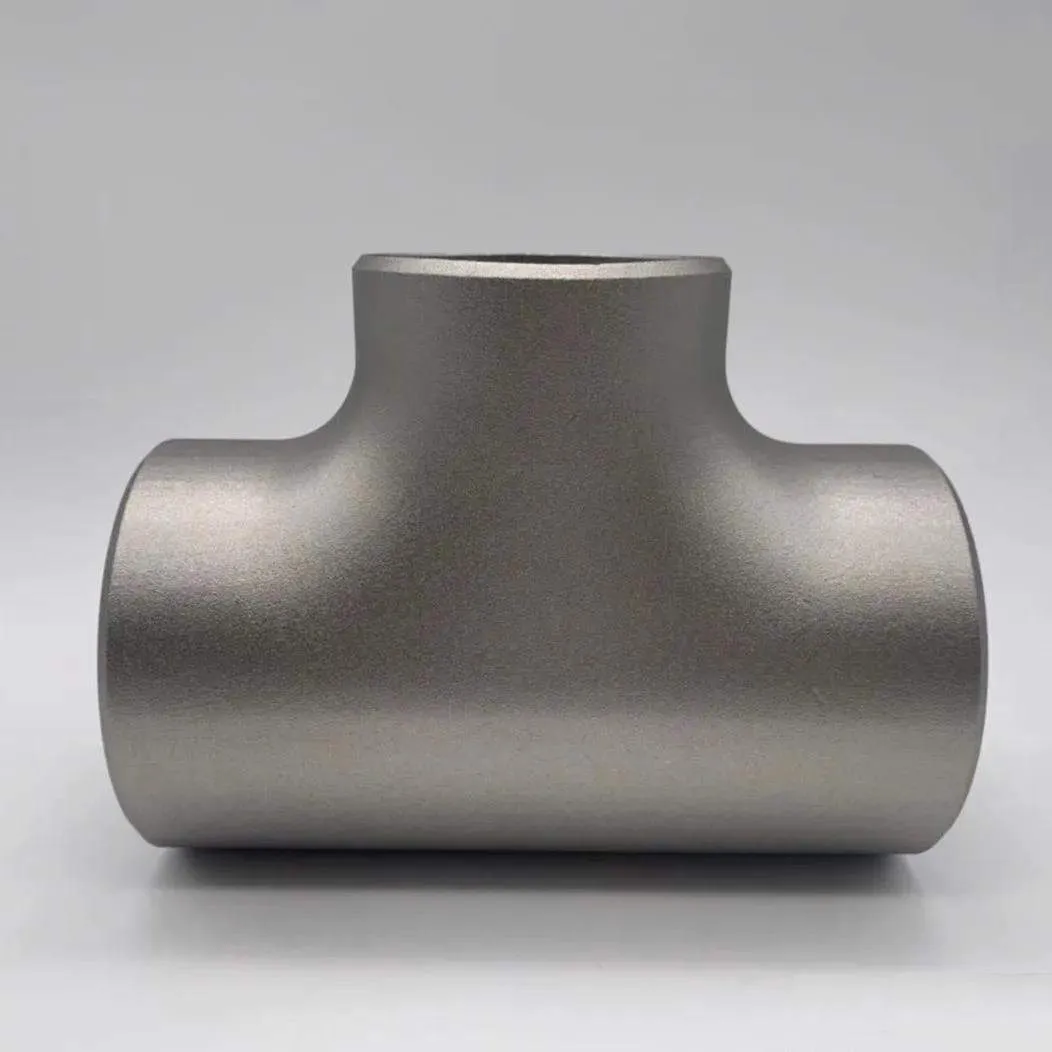

A tee is a threaded fitting that connects the main pipe and the branch pipe. It is divided into many types according to different manufacturing materials and uses.A carbon steel tee is a type of pipe fitting that is generally classified into two types. One is an equal-diameter tee, which has the same diameter at both ends and a different diameter between the branch pipe and the other two, called a reducing tee.

Carbon steel reducers, mainly represented by 20#, Q235, Q345, 16Mn, etc., are used to connect two pipes of different diameters. According to the different shapes, they are divided into concentric reducers and eccentric reducers. Concentricity is easy to understand; that is, the center points of the circles at both ends of the pipe are on the same straight line, which is called a concentric reducer; otherwise, it is an eccentric reducer.

Cap

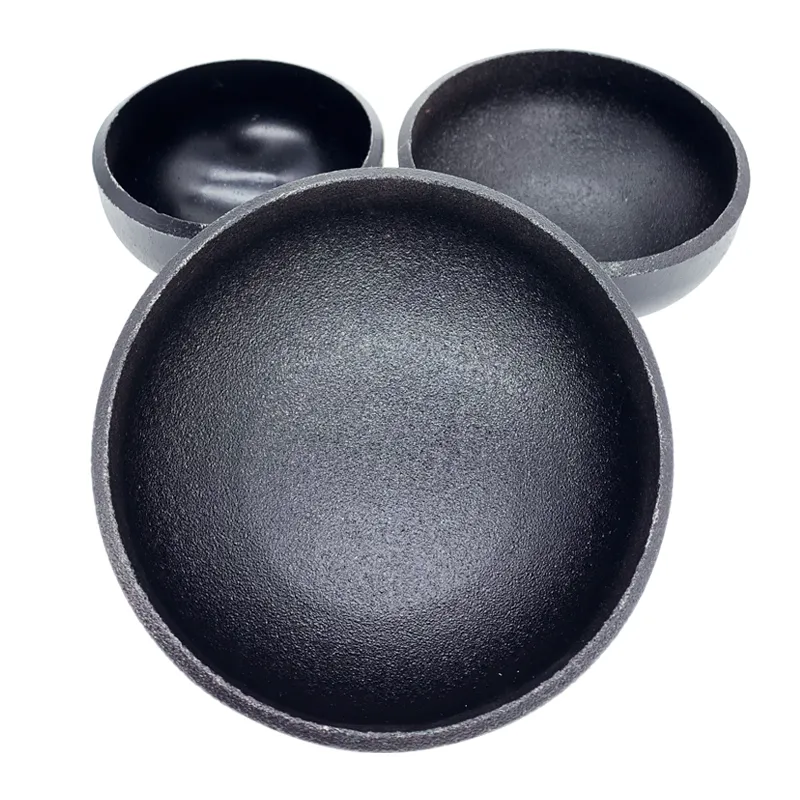

The materials of carbon steel pipe caps are mainly Q235, 20#, 16 manganese, 45# steel, etc. Its standards are GB/T12459-2005, GB/T13401-2005, etc. Some carbon steel pipe caps of the GB/T12459-2005 standard are seamless, and the pipe caps of the GB/T13401-2005 standard are large-welded. Other names for pipe caps are caps, plugs, covers, pipe covers, and blind heads. When splicing carbon steel pipe caps, the weld direction is only allowed to be radial and circumferential.
