SABS 1123 Flange vs. ANSI Flange: What’s the Difference?

When selecting flanges for industrial piping systems, engineers and procurement teams often face a critical choice: Which standard best aligns with their project requirements? Two prominent standards—SABS 1123 (South African Bureau of Standards) and ANSI Flanges (American National Standards Institute)—are widely used but cater to distinct regional and technical needs. Understanding their differences in design, materials, pressure ratings, and applications is essential for ensuring system integrity, compliance, and cost efficiency.

This blog provides a detailed comparison of SABS 1123 and ANSI flanges, empowering you to make informed decisions for your next project.



1. Overview of SABS 1123 and ANSI Flanges

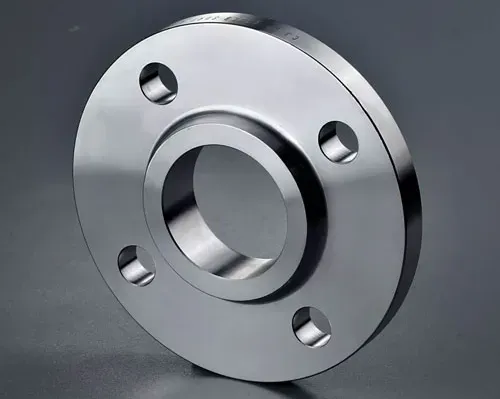

SABS 1123 Flanges



• Origin: Developed by the South African Bureau of Standards, SABS 1123 governs flanges used primarily in Southern Africa.

• Applications: Common in water supply, mining, and petrochemical industries within South Africa and neighboring regions.

• Key Features:

  Designed for compatibility with metric piping systems.
• Emphasizes corrosion resistance for harsh environments (e.g., coastal or high-humidity areas).
•

ANSI Flanges



• Origin: ANSI/ASME B16.5 is the American standard for flanges, recognized globally.

• Applications: Dominant in North America and widely adopted in international oil, gas, and chemical industries.

• Key Features:

  Follows imperial measurements (inches, pounds).
• Prioritizes high-pressure and high-temperature (HPHT) performance.



2. Dimensional and Design Differences



Size and Pressure Ratings

Parameter	SABS 1123	ANSI B16.5
Measurement System	Metric (mm, bar)	Imperial (inches, psi)
Pressure Classes	PN6, PN10, PN16, PN25	150#, 300#, 600#, 900#, etc.
Bolt Hole Diameter	Smaller, metric bolt sizes	Larger, imperial bolt sizes

Why It Matters:

• Interchangeability: Mixing SABS and ANSI flanges in a system can lead to misalignment, leaks, or safety risks due to incompatible dimensions.

• Regional Compliance: Projects in Africa may mandate SABS 1123, while ANSI is often required for U.S.-backed contracts.



3. Material Specifications

SABS 1123 Materials

• Common Grades: Carbon steel (SABS 1431), stainless steel (SABS 1577).

• Focus: Corrosion resistance and durability in humid or saline environments.

ANSI Materials

• Common Grades: ASTM A105 (carbon steel), ASTM A182 (stainless steel), exotic alloys (Hastelloy, Inconel).

• Focus: High tensile strength and thermal stability for HPHT applications.

Key Takeaway:

• SABS flanges may prioritize anti-corrosion coatings, while ANSI flanges often use thicker materials to handle extreme pressures.



4. Face Types and Sealing

Face Type	SABS 1123	ANSI B16.5
Raised Face (RF)	Standard for low-pressure	Common across all classes
Flat Face (FF)	Rare, limited to PN6	Used for low-pressure systems
Ring-Type Joint	Not typically used	Critical for HPHT systems

Implications:

• ANSI’s ring-type joint (RTJ) design offers superior sealing for volatile fluids (e.g., natural gas), whereas SABS relies on raised faces for general-purpose sealing.



5. Regional Compliance and Certification

SABS 1123

• Mandatory Regions: South Africa, Namibia, Botswana.

• Certification: Requires SABS Mark of Approval for local projects.

ANSI B16.5

• Global Acceptance: Recognized in the U.S., Europe (via ASME alignment), and Asia.

• Certification: Often requires ASME stamps or NACE MR0175 for sour service.

Procurement Tip:

• For multinational projects, verify whether local regulations accept ANSI as an alternative to SABS.



6. Cost and Lead Time Considerations

Factor	SABS 1123	ANSI B16.5
Material Costs	Lower (regional suppliers)	Higher (global demand)
Lead Time	Shorter in Africa	Longer for non-U.S. regions
Customization	Limited to regional specs	Extensive global customization

Case Study:
A mining project in Zambia opted for SABS 1123 flanges due to local supplier availability, reducing lead time by 40% compared to importing ANSI flanges.



7. When to Choose SABS 1123 vs. ANSI Flanges



Choose SABS 1123 If:

• Your project is based in Southern Africa.

• The system operates in corrosive environments (e.g., coastal plants).

• Budget and lead time constraints prioritize local sourcing.

Choose ANSI B16.5 If:

• The project serves global markets or involves HPHT conditions.

• Compliance with U.S. or EU standards is mandatory.

• Long-term maintenance plans rely on globally available spare parts.



8. FAQs

Q: Can SABS and ANSI flanges be used together?

A: Not recommended. Dimensional mismatches (bolt holes, face thickness) may compromise sealing.



Q: Which standard has higher pressure tolerance?

A: ANSI flanges (e.g., 2500# class) generally outperform SABS in extreme conditions.



Q: Are SABS flanges cheaper than ANSI?

A: In Africa, yes. However, imported ANSI flanges may cost more due to logistics.



The choice between SABS 1123 and ANSI flanges hinges on geography, operational demands, and compliance requirements. While SABS 1123 excels in cost-effective, corrosion-resistant applications within Africa, ANSI remains the gold standard for high-pressure global projects.

Pro Tip: Collaborate with suppliers early to align specifications with regional standards and avoid costly retrofits.

By understanding these differences, you can optimize safety, efficiency, and ROI in your piping systems.
