Slip-On Flange Applications

A slip-on flange (SOP flange) is a highly adaptable and widely used piping component. Known for its simple design and cost-effectiveness, the slip-on flange is used across numerous industries to facilitate reliable connections in piping systems. This article explores the applications of slip-on flanges in-depth, highlighting their advantages, key industries, and role in improving system performance.

Understanding the Basics of Slip-On Flanges

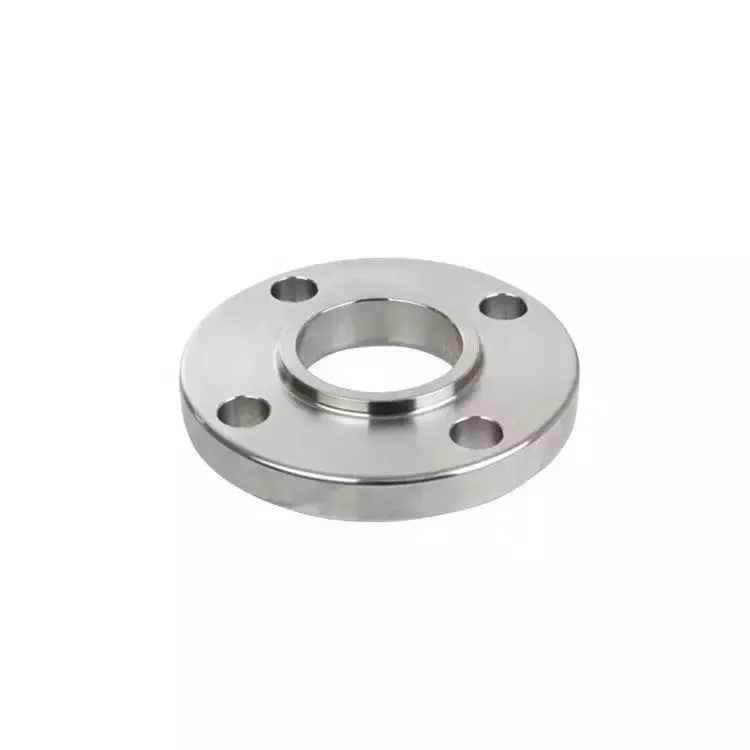

A slip-on flange is named for its ability to "slip" over the pipe, allowing for easy installation. The pipe passes through the flange, which is then welded on both the inner and outer edges. This double-weld ensures a secure and leak-proof connection. Slip-on flanges are typically used in low-pressure and low-temperature environments due to their relatively simple design and moderate strength.

Their flexibility in accommodating slight pipe misalignments, combined with their affordability, makes slip-on flanges a go-to solution for many projects. Available in materials such as stainless steel, carbon steel, and alloys, they can handle various applications in industries ranging from water treatment to petrochemicals.

Key Industries Using Slip-On Flanges

1. Water Treatment and Supply Systems
Slip-on flanges are commonly used in water pipelines and treatment plants. Their ease of installation and ability to handle low-pressure conditions make them ideal for transporting treated water, raw water, and even wastewater.

In municipal water supply systems, slip-on flanges connect pipelines over long distances. Their affordability reduces project costs while ensuring reliable connections for consistent water flow.

2. Chemical Processing
In chemical plants, slip-on flanges are used to connect pipelines carrying non-corrosive or mildly corrosive fluids. The availability of corrosion-resistant materials like stainless steel allows them to handle various chemical processes safely.

Slip-on flanges simplify maintenance in these environments. Their removable design ensures quick replacements or repairs, minimizing downtime and enhancing operational efficiency.

3. HVAC Systems
Heating, Ventilation, and Air Conditioning (HVAC) systems frequently utilize slip-on flanges for connecting ducting or low-pressure piping. They are particularly useful in large-scale commercial and industrial HVAC installations.

The ease of alignment during installation reduces labor costs, while the double-weld system ensures that no air or fluid leaks occur, maintaining the efficiency of the HVAC system.

4. Oil and Gas
Although slip-on flanges are less common in high-pressure oil and gas systems, they are still employed in specific low-pressure applications. For example, they are used in auxiliary piping systems, storage tank connections, and downstream operations where durability is required without the need for high-pressure resistance.

5. Food and Beverage Processing
Slip-on flanges made from food-grade stainless steel are used in the food and beverage industry. These flanges ensure sanitary connections in pipelines carrying liquids such as milk, juice, or other consumables. Their smooth surface reduces the risk of contamination, aligning with stringent hygiene standards.

Advantages of Using Slip-On Flanges

1. Cost-Effectiveness
Slip-on flanges are one of the most affordable flange for sale options, both in terms of material and installation costs. This makes them an excellent choice for projects with budget constraints.

2. Ease of Installation
The slip-on design allows for straightforward installation. Pipes do not need to be cut to precise lengths, saving time and effort during assembly. This is particularly beneficial in large-scale projects or in areas where skilled labor is limited.

3. Versatility
Slip-on flanges are available in a wide range of materials, sizes, and pressure ratings, allowing them to be used in various applications. Their flexibility in handling pipes with slight dimensional variations is another significant advantage.

4. Low Maintenance
The simple construction of sop flanges makes them easy to inspect, clean, and maintain. Their double-weld feature minimizes the risk of leaks, reducing the need for frequent repairs.
