Stainless Steel Weld Fittings

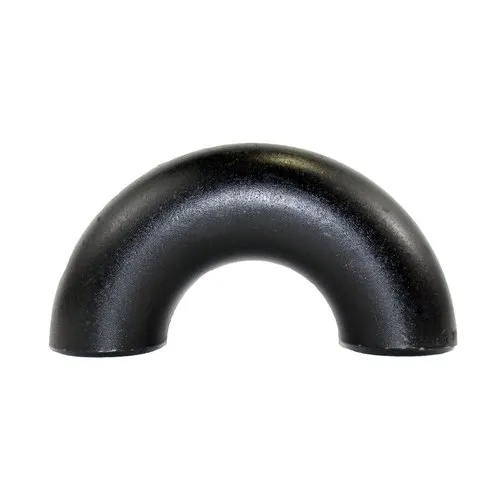

Stainless Steel Weld Fittings A Comprehensive Guide Stainless steel weld fittings are an essential component in various industrial applications due to their exceptional corrosion resistance, strength, and durability. These fittings are used to connect or branch stainless steel pipes, tubes, and other components in systems that require high pressure, temperature, and chemical resistance. In this comprehensive guide, we will discuss the different types of stainless steel weld fittings, their properties, applications, and how to select the right one for your specific needs. Types of Stainless Steel Weld Fittings 1. Elbows These fittings are used to change the direction of the pipe or tube. They come in various angles, such as 45°, 90°, and 180°. 2. Tees Tees are used to connect three pipes or tubes at a common junction. They can be straight or angled, depending on your requirements. 3. Crosses Crosses are similar to tees but have four ports instead of three. They are used to distribute fluid flow in different directions. 4. Reducers Reducers are used to connect pipes or tubes with different diameters. They can either reduce or increase the diameter of the pipe. 5. Caps Caps are used to seal the end of a pipe or tube. They prevent dirt, debris, and moisture from entering the system. 6. Flanges Flanges are used to connect two or more pipes or tubes securely. They provide a strong seal and can withstand high pressure and temperature. 7. Union Joints Union joints are used to connect two pipes or tubes temporarily or permanently. They allow for easy disassembly and reassembly without damaging the pipes or tubes They allow for easy disassembly and reassembly without damaging the pipes or tubes They allow for easy disassembly and reassembly without damaging the pipes or tubes They allow for easy disassembly and reassembly without damaging the pipes or tubesstainless steel weld fittings. Properties of Stainless Steel Weld Fittings Stainless steel is known for its excellent corrosion resistance, strength, and durability. The most commonly used stainless steel grades for weld fittings are 304 and 316. These grades have high chromium and nickel content, which provides excellent corrosion resistance in various environments. Additionally, stainless steel weld fittings have high tensile strength, yield strength, and hardness, making them suitable for high-pressure and high-temperature applications. Applications of Stainless Steel Weld Fittings Stainless steel weld fittings are widely used in various industries, including oil and gas, petrochemical, power generation, pharmaceutical, and food processing. They are used in pipelines, tanks, heat exchangers, boilers, and many other applications where corrosion resistance, strength, and durability are critical. How to Select the Right Stainless Steel Weld Fittings When selecting stainless steel weld fittings, it is important to consider the following factors 1. Material Choose the appropriate grade of stainless steel based on the specific requirements of your application. 2. Size Ensure that the size of the fitting matches the diameter of the pipes or tubes you are connecting. 3. Pressure rating Select a fitting with a pressure rating that meets the requirements of your system. 4. Temperature rating Choose a fitting with a temperature rating that can withstand the operating temperature of your system. 5. End connections Determine the type of end connection required for your application (e.g., threaded, socket weld, grooved). 6. Quality Ensure that the weld fittings you choose are made from high-quality material and are properly manufactured to ensure reliability and durability. In conclusion, stainless steel weld fittings are a crucial component in various industrial applications. By understanding the different types, properties, applications, and selection criteria, you can choose the right stainless steel weld fittings for your specific needs.
