The Role of Butt Weld Elbows in Pipefitting: A Comprehensive Guide

Butt weld elbows are essential components in piping systems, used to connect pipes at various angles. These fittings are particularly important in industries that rely on smooth, efficient fluid or gas flow, such as oil and gas, chemical processing, water treatment, and power generation. This guide explores the crucial role of butt weld elbows in pipefitting, their benefits, types, and application considerations.





What are Butt Weld Elbows?



A weld on pipe elbows is a type of pipe fitting that allows two sections of pipe to be joined at an angle, typically 45°, 90°, or 180°. The term "butt weld" refers to the method used to join the pipes, where the ends of the pipes are beveled and welded together to create a strong, permanent connection. This type of fitting ensures that the flow of materials, such as liquids, gases, or slurries, remains smooth and uninterrupted.



Benefits of Using Butt Weld Elbows



The use of weld elbows offers several advantages over other types of fittings. One of the most significant benefits is the smooth, uninterrupted flow of material. Since the elbow is welded directly onto the pipe, there are no internal threads or grooves that could create turbulence or resistance to flow. This makes butt weld elbows ideal for high-pressure systems and applications where efficiency is critical.



Another advantage of butt weld elbows is their strength and durability. When properly welded, these fittings form a seamless, robust joint that can withstand high pressures, extreme temperatures, and harsh chemicals. The absence of mechanical threads or seals also reduces the risk of leaks, which is a common issue with other types of pipe fittings.





Types of Butt Weld Elbows

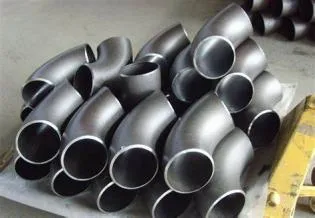

Butt weld elbows are available in different angles to accommodate various flow directions within a piping system. The most common types are:

•

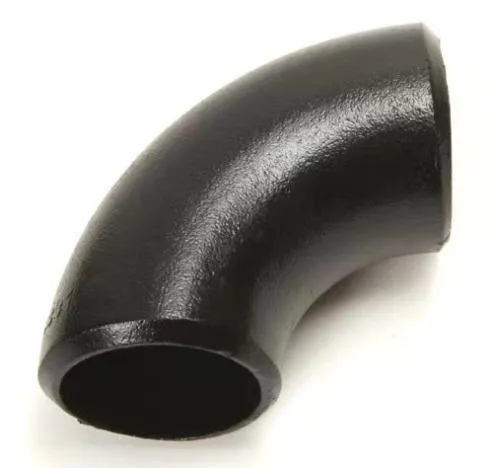

90° Elbows: These are used to change the direction of the pipeline by 90 degrees. They are commonly used in applications that require sharp turns, such as in plumbing and industrial systems.

•
•

45° Elbows: These are used when a more gradual turn is needed, and they help reduce the strain on the piping system by distributing the flow more evenly. They are typically used in systems where space constraints require a moderate bend.

•
•

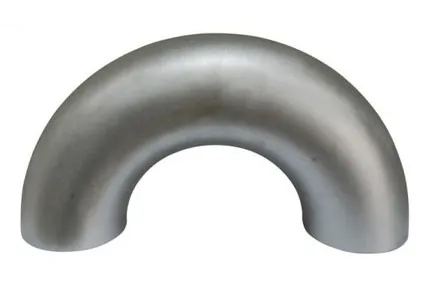

180° Elbows: These elbows allow for a complete reversal of flow direction and are often used in systems that require pipes to return in the opposite direction.

•

In addition to these common angles, custom angles can be fabricated based on specific system requirements.



Materials Used for Butt Weld Elbows



The material chosen for butt weld elbows is crucial for their performance, especially in industries with high temperatures, high pressures, or corrosive materials. Common materials include:

•

Carbon Steel: Widely used for general industrial applications due to its strength and cost-effectiveness.

•

Stainless Steel: Preferred for its corrosion resistance, especially in chemical and food processing applications. Stainless steel butt weld elbows are ideal for systems that handle corrosive materials or require sanitation.



Alloy Steel: Often used for high-temperature applications, such as in power plants or refineries, due to its ability to resist heat and stress.

•

Plastic: Used in less demanding systems, especially where corrosion resistance is not a significant concern, such as in residential or low-pressure applications.

•

Each material offers specific benefits, and the choice depends on the nature of the application and the environmental factors the piping system will encounter.





Installation of Butt Weld Elbows



Proper installation of butt weld elbows is critical for ensuring the integrity and longevity of the piping system. The installation process typically involves the following steps:



Preparation: The ends of the pipes are beveled to create a clean, angled surface that ensures a strong weld. This step is crucial for the overall strength of the joint.



Alignment: The elbow must be aligned correctly with the piping system to ensure a precise fit. This is important to avoid stress on the system and to maintain proper fluid flow.



Welding: The beveled edges of the pipe and elbow are welded together, typically using a TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding process. The welding must be done with precision to avoid weak spots and to ensure a uniform joint.



Inspection: After the welding process, the joint is inspected for quality. Non-destructive testing methods, such as ultrasonic or X-ray inspection, are often used to check for weld defects or weaknesses.



Testing: Once installed, the piping system should be tested for leaks and pressure resistance to ensure the integrity of the connection.



Common Applications of Butt Weld Elbows



Butt weld elbows are used in a wide range of industries, each with its specific requirements. Some common applications include:

•

Oil and Gas Industry: Butt weld elbows are essential for maintaining the flow of oil, gas, and other fluids under high pressure. They are used in pipelines, refineries, and offshore drilling rigs.

•

Chemical Processing: In chemical plants, butt weld elbows help direct the flow of chemicals through piping systems. The fittings are made from materials that can withstand the corrosive properties of certain chemicals.

•

Water Treatment: Water treatment plants use butt weld elbows to direct water flow through filtration systems, pumps, and other equipment. These systems often require elbows made from corrosion-resistant materials like stainless steel.

•

Power Generation: In power plants, where steam and high-pressure water are used, butt weld elbows are used to direct the flow of fluids through boilers, turbines, and heat exchangers.
