When it comes to the world of piping systems, the devil is in the details—or in this case, the fittings. Whether you’re in the petrochemical, pharmaceutical, or food processing industry, the type of fittings you choose can make or break your system. Today, we’re focusing on one of the most robust and reliable types of fittings: butt weld fittings.

What Are Butt Weld Fittings?

Butt weld fittings are specialized connectors designed to be welded to pipes, creating a permanent, leak-proof bond. These fittings are particularly popular in high-pressure and high-temperature applications. The ASME B16.9 standard provides guidelines for dimensions, tolerances, materials, testing, and marking of butt weld fittings, ensuring quality and interchangeability.

butt weld fittings are robust and resilient in harsh environments. They offer smooth inner surfaces and gradual directional changes, ensuring seamless flow and minimizing pressure drops.

Why Choose Butt Weld Over Socket Weld Fittings?

When it comes to welded fittings, you generally have two options: butt weld and socket weld fittings. While both have their merits, butt weld fittings generally provide higher joint integrity due to full penetration welding. They are also more suitable for larger pipe sizes and higher-pressure systems. On the other hand, socket weld fittings are easier to install but may not be suitable for corrosive fluid service due to crevice corrosion.

The Importance of Material Choice

The material of your butt weld fitting is crucial. Typically, the fitting material should be the same as the pipe it’s welded to. This ensures compatibility, consistent mechanical properties, and avoids issues such as galvanic corrosion or differential expansion. For specialized properties like high-temperature resistance, materials like nickel alloy, super duplex, or 6% Molybdenum can be used. For more information on material grades.

Brew Quality Fittings: A Niche Application

When it comes to brewing, the quality of your fittings can significantly impact the final product. Brew quality fittings, especially those made of stainless steel, are essential for maintaining the purity and flavor of your brew. They offer superior resistance to corrosion and erosion, ensuring a long service life. For a wide range of quality fittings.

Factors to Consider While Selecting Butt Weld Fittings

• Industry Codes and Standards: Always refer to applicable industry codes and standards like ASME B31.3 for process piping.
• Material and Wall Thickness: Thicker-walled pipes or fittings may require a larger beveling angle or double bevel to ensure proper penetration and fusion.
• Operating Conditions: Evaluate the pressure, temperature, and corrosiveness of your application.
• Cost: While butt weld fittings may initially be more expensive, their long-term benefits often outweigh the initial cost.

FAQs

• How do I select the right size of welded fittings for my piping system?
  • Choose welded fittings based on your application’s nominal pipe size (NPS) or outside diameter (OD) of your pipes.
• Can welded fittings be disassembled and reused?
  • Typically, no. They are intended to remain in place permanently.
• What are some common industries where welded fittings are used?
  • Industries such as oil and gas, petrochemical, chemical processing, power generation, and water treatment commonly use welded fittings.

Used BrowserOp

Tips for Identifying Quality Butt Weld Pipe Fittings

When it comes to butt weld pipe fittings, quality is non-negotiable. Given that these fittings are welded into the piping system, removal can be quite challenging. Therefore, it’s crucial to get it right the first time. Here are some expert tips to help you identify quality butt weld pipe fittings, inspired by insights from Ritinox Overseas.

Dimensional Accuracy

The first thing you should check is the dimensions of the fittings. The diameters of the butt welding fittings should conform to the ends of the pipes. This ensures a hermetic seal, preventing any potential leaks. Always opt for fittings with high dimensional tolerances, as specified by quality inspection standards.

Surface Inspection

Don’t underestimate the importance of a thorough surface inspection. The quality of the surface can often be visually assessed to determine whether the fittings are hard and solid. This can also give you clues about the manufacturing time and whether the stock is new or old. A quality surface is usually an indicator of quality raw material.

Material Test Certificates (MTC)

MTC information is vital for quality assurance. From the MTC, you can quickly find standard details, compliance evaluations, and other relevant information. Make sure the fittings you choose have been thoroughly reviewed and verified according to national and international standards.

Final Thoughts

Quality butt weld pipe fittings are crucial for the integrity of your piping system. They are welded into the system, making them difficult to remove, so it’s essential to choose wisely. By paying attention to dimensions, conducting surface inspections, and reviewing MTC information, you can ensure that you’re selecting the best possible fittings for your project.

With these tips in mind, you’re well-equipped to make an informed decision when choosing butt weld fittings, whether they are standard or specialized brew quality fittings. For a wide range of quality fittings.

For more information or to get in touch with experts.

Understanding Commonly Asked Questions About Butt Weld Pipe Fittings

In the world of piping and fittings, butt weld pipe fittings are a topic that often comes up. These fittings are essential for changing the direction of flow, branching off, reducing pipe size, or attaching auxiliary equipment. But there are several questions that customers frequently ask when it comes to specifying these fittings.

Material Confusion: A105 vs. A234WPB

One common question is about the material used for butt weld fittings. While A234WPB is the most common carbon steel material used, some customers mistakenly ask for A105 or A106 butt weld fittings. It’s important to note that there is no such thing as A105 or A106 butt weld fitting.

The “Normalized” Misconception

Another frequent query is about “normalized” butt weld fittings. While flanges are available in A105 and A105 N (where N stands for normalized), there is no such thing as A234WPBN. However, if you need “normalized” fittings, you should request WPL6 fittings, which are high yield and are normalized as a standard procedure.\

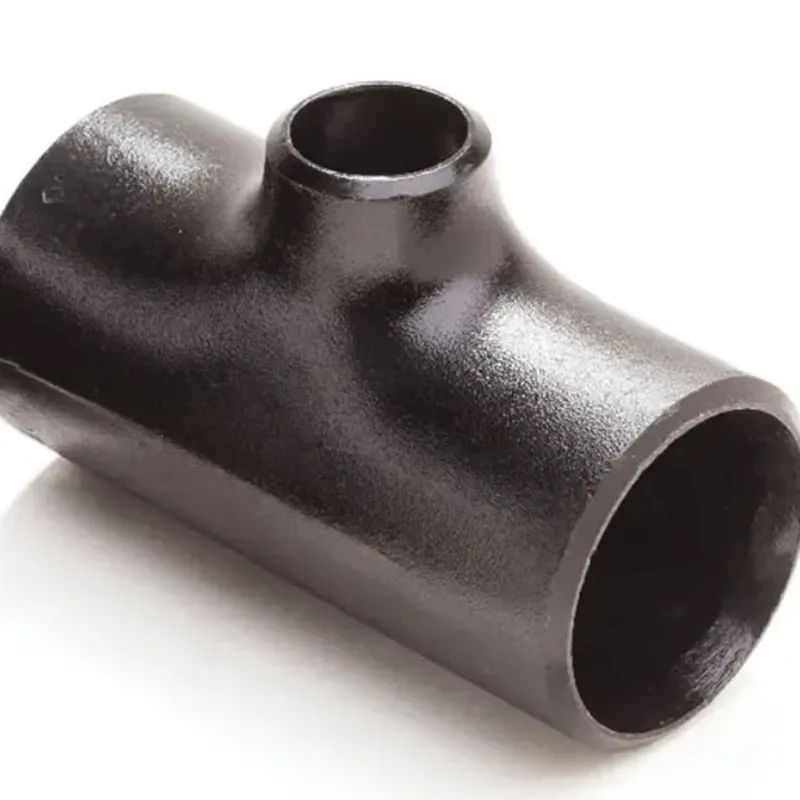

ANSI/ASME B16.9 BUTT-WELDING FITTINGS Equal Tee/Reducing Tee

Importance of Pipe Schedule

Customers often forget to mention the pipe schedule when ordering buttweld fittings. These fittings are sold as per pipe size, but the pipe schedule must be specified to match the ID of the fitting to the ID of the pipe. If no schedule is mentioned, it’s generally assumed that a standard wall is requested.

SCH 40 & True Schedule 40

For pipe fittings 12 inches or larger, it’s crucial to specify if the fitting is a standard wall (most commonly referred to as SCH 40) or a true schedule 40. This is because schedule 40 does not correspond to standard wall for pipe sizes 12” and bigger.

Stainless Steel Options

Stainless steel buttweld pipe fittings are available in different schedules like 10s and 40s. Customers should specify if they need a standard wall (sch 40s) or a thinner wall (sch 10s).

Welded vs. Seamless

Butt weld fittings are available in both welded and seamless configurations. Seamless fittings are generally more expensive and are not common in sizes bigger than 12 inches. Welded fittings are made of ERW welded carbon steel or stainless steel pipe.

Short Radius (SR) or Long Radius (LR)

You may often hear terms like SR45 elbow or LR45 elbow. The numbers 45 or 90 refer to the angle of the bend. A long radius elbow will have a pipe bend that is 1.5 times the size of the pipe, while a short radius elbow has a bend equal to the size of the fitting.

What is a 3R or 3D Elbow?

A 3R or 3D elbow has a bending radius that is 3 times the nominal pipe size, making it smoother than SR or LR fittings.

Understanding these nuances can help you make more informed decisions when specifying or purchasing butt weld pipe fittings.

Conclusion

Choosing the right butt weld fittings is not just a matter of connecting pipes; it’s about ensuring the efficiency, safety, and longevity of your entire system. Whether you’re in the market for standard fittings or specialized brew quality fittings, making an informed choice can save you time, money, and a lot of headaches down the line. For a wide range of options.
