What is a Butt Weld (Buttweld) Fitting?

A buttweld fitting is a weldable pipe fitting that allows for change of direction of flow, to branch off, reduce pipe size or attach auxiliary equipment. Forged Steel buttweld fittings are manufactured in accordance with ANSI / ASME B16.9.

Butt weld fittings are available as elbows, tees, caps, reducers and out lets (olets). These fittings are the most common type of welded pipe fittings and are specified by nominal pipe size and pipe schedule. Buttweld fittings use seamless or welded pipe as the starting material and are formed (through multiple processes) to get the shape of elbows, tees and reducers etc. Just as the pipe is sold from Schedule 10 to Schedule 160, butt weld pipe fittings are sold the same way. Welded butt weld fittings are more common in stainless steel due to cost advantage. Sch 10 fittings are also more common in stainless steel butt weld fittings.

Common material for butt weld fittings are A234 WPB (A & C also available), High Yield Carbon Steel, Stainless Steel 304 and 316 and Nickel Alloys.

Buttweld pipe fittings comprise of long radius elbow, concentric reducer, eccentric reducers and tees. They are an important part of industrial piping systems to change direction, branch off or to mechanically join equipment to the system. Buttweld fittings are sold in nominal pipe sizes with specified pipe schedule. BW fitting’s dimensions and tolerances are defined as per ASME standard B16.9.

Butt Weld fittings are also called Welded Pipe fittings. These welded fittings in carbon steel and stainless steel offer many advantages compared to threaded and socket weld fittings. The latter are only available up to 4-inch nominal size whereas butt weld fittings are available in sizes from ½” to 72”. Some of the benefits of Buttweld fittings are mentioned below.

Types of Butt Weld Pipe Fittings

Welded pipe fittings in carbon steel and stainless steel are the joining components that make possible the assembly of valves, pipes and equipment onto the piping system. Welded fittings compliment pipe flanges in any piping system and allows:

• Change direction of flow in a piping system
• Connect or joint pipes and equipment
• Provide branches, access and takeoffs for auxiliary equipment

A common example using welded pipe fitting is a pipe reduced by concentric reducer, welded to a weld neck flange and connected to equipment. The figure below represents a complete collection of butt welded pipe fittings.

 Butt Weld Fitting Collection

Buttweld Pipe Fitting Specification & Standards

Welded pipe fittings are made as per ASME spec B16.9. ASME B16.9 covers factory made wrought steel butwelding fittings in sizes 1/2" to 48". This standard however does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.

Common Materials for Welded Pipe Fittings

Carbon Steel Welded Fitting:

A234 WPB is the most common material used for carbon steel butt welded fittings.

ASTM A234 WPB is the Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service.

Specifications

ASTM:   A234 WPB

ASME:   B16.9, B.11

NACE:    MRO175

MSS:      SP-83, SP-95

Chemical Composition%

1. Fittings made from bar or plate may have 0.35 max carbon.
2. Fittings made from forgings may have 0.35 max Carbon and 0.35 max Silicon with no min.
3. For each reduction of 0.01% below the specified Carbon maximum, an increase of 0.06% Manganese above the specified maximum will be permitted, up to a maximum of 1.35%.
4. The sum of Copper, Nickel, Niobium, and Molybdenum shall not exceed 1.00%.
5. The sum of Niobium and Molybdenum shall not exceed 0.32%.

Stainless Steel Butt Weld Fittings:

Stainless buttweld fittings are available in 316 and 304 grades.

304/304L (UNS S30400/S30403)

Chemical Composition%

Tensile Requirements

Tensile Strength:  (KSI) = 60

Yield Strength:  (KSI) = 35

(KSI converts to MPA {Megapascals} by multiplying by 6.895)

ANSI/ASME B16.9 BUTT-WELDING FITTINGS Equal Tee/Reducing Tee

316/316L (UNS S31600/S31603)

Chemical Composition%

Tensile Requirements

Tensile Strength:  (KSI) = 70

Yield Strength:  (KSI) = 25

(KSI converts to MPA {Megapascals} by multiplying by 6.895)

How a Butt Weld Fitting is Made?

A butt weld pipe fitting is made by the process of hot forming that includes bending and forming to shape. The starting material of butt weld fitting is a pipe that is cut to length, heated and molded into specific shapes by means of dyes. Heat treatment is also done to remove residual stresses and obtain desired mechanical properties. Read the link here to get more in depth detail of butt weld fitting manufacturing.

Benefits of Butt Weld Pipe Fittings

• Welded connection offers a more robust connection
• Continuous metal structure adds to the strength of the piping system
• Buttweld fittings with matching pipe schedules, offers seamless flow inside the pipe. A full penetration weld and properly fitted LR 90 Elbow, Reducer, Concentric reducer etc. offers gradual transition via welded pipe fitting
• Option of various turn radius using Short Radius (SR), Long Radius (LR) or 3R Elbows
• Cost effective compared to their expensive threaded or socket weld counter parts
• Stainless Steel Welded Fittings are also available in SCH 10, allowing a more thinner wall option
• Stainless Steel Butt Weld Fittings are more common in SCH 10 and SCH 40 configuration

 All butt weld fittings have beveled ends as per ASME B16.25 standard. This helps create full penetration weld without any extra preparation needed for the butt weld fitting.

Butt weld pipe fittings are most commonly available in carbon steel, stainless steel, nickel alloy, aluminum and high yield material. High yield butt weld carbon steel pipe fittings are available in A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, Y-70.  All WPL6 pipe fittings are annealed and are NACE MR0157 and NACE MR0103 compatible.

Trupply is one of the largest distributors of pipe, flanges, and fittings. We handle hundreds of requests every day. Some of the common misconceptions are addressed in Q&A below.

Q&A

• Customer asked for butt weld fittings in A105: Most common carbon steel buttweld fitting material is A234WPB. It is equivalent to A105 flanges, however there is no such thing as an A105 or A106 butt weld fitting.
• Customer requests “Normalized” butt weld fittings: This is also a misconception since flanges are available in A105 and A105 N, where N stands for normalized. However, there is no such thing as A234WPBN. Some manufactures normalize their butt weld fittings as a standard procedure and such request requires checking individual material test certificates to verify if normalized heat treating process was done. Customer needing “normalized” butt weld fittings should request WPL6 fittings which are high yield and are normalized as a standard procedure.
• Customer forgets to mention pipe schedule: Buttweld fittings are sold as per pipe size but pipe schedule must be specified to match the ID of the fitting to the ID of the pipe. If no schedule is mentioned, we will assume a standard wall is requested.
• Differentiate between SCH 40 & True Schedule 40: Pipe fittings 12 inch or larger require specifying if fitting is standard wall (most commonly referred to sch 40) or a true schedule 40 is required. This is needed since schedule 40 does NOT correspond to standard wall for pipe sizes 12” and bigger. A true sch 40 will be thicker than standard wall for pipe fittings 12” or bigger.
• Differentiate between SCH 80 & True Schedule 80: For pipe sizes 10 in and above, sch 80 does NOT correspond to XH. Customer must specify if they want SCH 80 or XH wall.
• Stainless Steel buttweld pipe fittings are available in schedule 10s: Customer should specify if they need standard wall (sch 40s) or a thinner wall sch 10s stainless steel butt weld fitting. See pipe chart to clarify how the wall thickness for stainless steel pipes correlate to different pipe schedules.
• Customer forgets to mention welded or seamless butt weld fitting: Butt weld fittings are available in both welded and seamless configuration. A seamless butt weld carbon steel or stainless steel fitting is made of seamless pipe and is generally more expensive. Seamless pipe fittings are NOT common in sizes bigger than 12”. Welded pipe fittings are made of ERW welded carbon steel or stainless steel pipe. They are available in sizes ½” to 72” and are more affordable than seamless fittings.

What does Short Radius (SR) or Long Radius (LR) means?

You will often hear SR45 elbow or LR45 elbow. The 45 or 90 refers to the angle of the bend for buttweld fitting to change the direction of flow. A long radius elbow (LR 90 Elbow or LR 45 elbow) will have a pipe bend that will be 1.5 times the size of the pipe. So, a 6 inch LR 90 has bending radius that is 1.5 x nominal pipe size. A short radius elbow (SR45 or SR90) has a pipe bend that is equal to the size of the fitting, so a 6” SR 45 has a bending radius that is 6” nominal pipe size.

What is a 3R or 3D elbow pipe fitting?

First, the terms 3R or 3D are used synonymously. A 3R butt weld elbow has a bending radius that is 3 times the nominal pipe size. A 3R elbow is smoother than SR or LR fitting.

Welded Pipe Reducers

Butt weld fittings are available in concentric reducers and eccentric reducers to reduce the flow from one size of pipe to another. A concentric reducer butt weld fitting is symmetrical: both ends are aligned along the center.

An eccentric reducer butt weld fitting is not symmetrical: ends are off center of one another.

Manufacturer and Origin Options

Trupply is an authorized distributor of Weldbend, which is one of the largest manufacturers of domestic carbon steel butt weld fittings and flanges. Domestic stainless steel butt weld fittings are made by Taylor Forge Stainless. Trupply also offers approved and unapproved import pipe fittings such as Erne Fittings, SKBend and TKBend, for more cost-conscious customers. All butt weld fittings are provided material test reports (MTR).

*Video Transcript

Good morning. Today we’re talking about butt weld fittings. Here’s a collection of carbon steel buttweld fittings. This is a Tee, this is concentric reducer, this is a reducing Tee, this is a 45 elbow, this is a short radius 90 elbow, this is a long radius 90 elbow, this is a pipe cap, and this is an eccentric reducer. These are some examples of butt welded fitting in stainless steel. This particular one is a 304 stainless Tee, and this is a stainless 90-degree elbow, and this is a stainless eccentric reducer.

Butt weld pipe fitting is available in carbon steel, stainless steel, nickel alloy, and the most common material for butt weld fitting in carbon steel is A234-WPB. These fittings are also available in carbon steel in high-yield, you just have to specify that. All butt weld fittings are made from a pipe, they use pipe as the starting material. Commonly, the smaller sized butt weld fittings are made of a seamless pipe, but as you go bigger, usually larger than 18 inch nominal size, these fittings are made of a welded pipe and they’re also called a welded butt weld fitting.

To explain the individual butt weld fittings again, this is a 45-degree elbow. If you notice, all butt weld fittings have a bevel on the ends. This is a 2 inch pipe sample that we’re using. All of these fittings are 2 inch pipe fittings and the way you weld it is by taking a pipe (you should have a bevel here) and you butt it out. That’s why they’re called butt weld fittings. Then, you can do a welding right here. You can do a full penetration weld depending on your welding spec. The other pipe goes from here and it will make a 45-degree angle.

This is a 90-degree, this is a short radius 90-degree. The difference between a short radius 90 and a long radius 90 is that a short radius is a much tighter turn. Depending on your piping drawing; if it calls for a tighter turn, then you will request a short radius 90-degree elbow. Otherwise, you will request a long radius. They both do the same thing and as I showed you before, you just butt it out, you weld it, the other piece goes here, and then it makes a 90-degree right here. Same thing with the long radius, this is how you connect it, then the other portion goes right here.

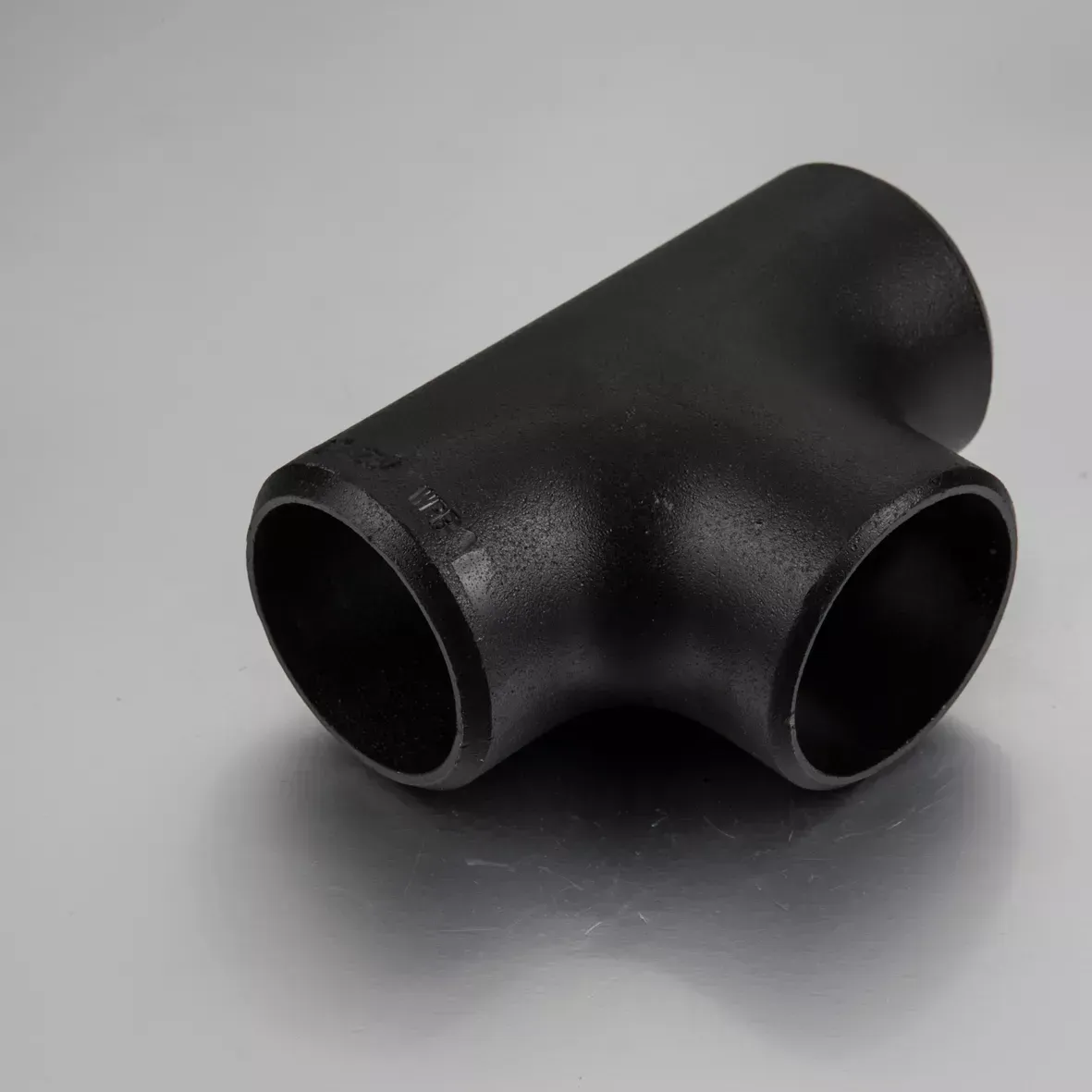

This is a standard Tee; the main run and the branch are the same size. This is 2 inch tee. You do the same thing, you connect the pipe like this and you weld it, and you make a Tee connection. The Tee is also available as a reducing T, and you can see that this is a 2 inch by about three-quarter inch. So, it’s a 2 inch run here, then it’s reducing to a three-quarter inch. If your piping installation calls for a reduction in the branch, then you will request a reducing Tee.

One thing I wanted to mention is that all butt weld pipe fittings require you to specify the schedule, that’s how you determine the wall thickness and the pressure rating. If you compare it with a socket weld or a threaded fitting, they come in a 3000 pound and 6000 pound, whereas a butt weld fitting comes in a schedule 20, schedule 40, schedule 60, schedule 80, standard, extra heavy, and double X heavy- you have to specify the schedule of the pipe. This particular one is a concentric reducer and it reduces from 2 inch down to 1 inch or you can specify what reduction you want in the concentric reducer.

This is an eccentric reducer. The same thing but not in line. So, if your main branch is right here, depending on your installation; if you want to be off axis then you put another pipe right here and it makes an eccentric reducer. This is how the eccentric reducer looks.

This is a pipe cap. As the name says, you use it to cap the pipe. If you have a pipe or nozzle or something similar, you can butt it up and weld it and cap the pipe, so a pipe cap.

In summary, butt weld pipe fittings are available in carbon steel, stainless steel, and nickel alloy. For butt weld fittings, you have to specify the schedule, that’s how this pressure rating is determined. You have to specify a schedule 40, 80, and so on and so forth. The most common material for butt weld fitting in carbon steel is A234-WPB, they’re available in high-yield, stainless, and nickel alloys. That’s it. Thank you.
