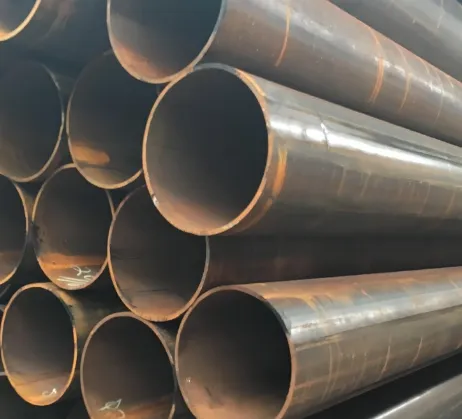

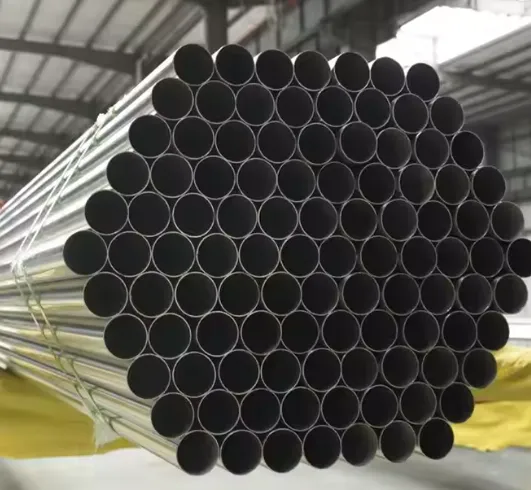

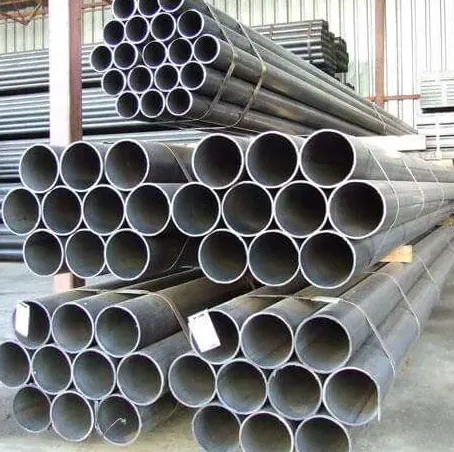

Steel Pipes - EN 10217

EN 10217 is the European standard for welded steel tubes for pressure purposes, usually from 10.2mm to 2540mm in outer diameter and from 1.4mm to 25.4mm in wall thickness. Its application areas include pipeline systems that need to withstand pressure in petroleum, chemical, natural gas, electric power and other industries, as well as occasions where there are pressure requirements for steel pipes in construction, machinery manufacturing and other fields.

CONTACT NOW PDF DOWNLOAD

Steel Pipes - EN 10217

Specifications	Range
Out Diameter	33.4mm - 609.6mm
Wall Thickness	3mm - 12mm

EN 10217 welded steel tubes for pressure purposes

Tolerances:

Characteristic	Tolerance
Outside diameter: D≤114,3	±1% or +/-0,5
Off-roundness	For tubes of outside diameter D ≤ 114,3 mm, out-of-roundness shall be included in the limits of the diameter tolerances.
Wall thickness (T): ≤5	+/-10% or +/-0,3 mm Whichever is the greater.
Wall thickness (T): >5	+/-8% or +/-2 mm, Whichever is the smaller.
Height of the internal weld seam	The maximum height of the internal weld seam, after trimming shall be 1,5 mm
Outside	Trimmed
Straightness	The deviation from straightness, of any tube length L, shall not exceed 0,0015L. Deviations from straightness over any one metre length shall not exceed 3mm
Weight (M)	For the mass per unit length the provisions of ENV 10220 apply
Standard length	≥ 6000 mm: 0/+50 mm

Mechanical properties

Steel Grade	Yield strength (Mpa) min	Tensile strength (Mpa)	Elongation (%) min
P195TR1	195	320-440	27
P195TR2	195	320-440	27
P235TR1	235	360-500	25
P235TR2	235	360-500	25
P265TR1	265	410-570	21
P265TR2	265	410-570	21

Chemical composition

Steel		C	Si	Mn	P	S	Cr	Mo	Ni	Cu	Nb	Ti	V
Grade	Number	max	max	max	max	max	max	max	max	max	max	max	max
P195TR1	1.0107	0.13	0.35	0.7	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
P195TR2	1.0108	0.13	0.35	0.7	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
P235TR1	1.0254	0.16	0.35	1.2	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
P235TR2	1.0255	0.16	0.35	1.2	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
P265TR1	1.0258	0.2	0.4	1.4	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
P265TR2	1.0259	0.2	0.4	1.4	0.025	0.02	0.3	0.08	0.3	0.3	0.01	0.04	0.02
