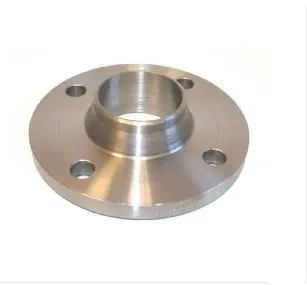

DIN 2633 Welding Neck Flanges: How the Long Neck Design Became the 'Stress Buffer' for High-Pressure Piping

In the high-stakes world of industrial piping systems, where failure can lead to catastrophic consequences, the DIN 2633 welding neck flange stands out as an engineering marvel, particularly for its unique long neck design. YULONG Steel, a leading manufacturer of DIN 2633 flanges, has perfected this design to create a stress-dispersing mechanism that safeguards high-pressure pipelines across industries—from petrochemical plants to power generation facilities. This article delves into the mechanical genius behind the long neck, exploring how it transforms thermal and mechanical stresses into manageable forces, and why YULONG's precision engineering makes these flanges the gold standard for critical applications.

The Mechanical Magic of the Long Neck DIN 2633 Flange: More Than Just a Design Feature

The defining characteristic of DIN 2633 welding neck flanges—the elongated neck extending from the flange face to the pipe—serves as a purpose-built stress buffer, addressing two primary challenges in high-pressure systems:

• Thermal Expansion Stresses: In pipelines carrying hot fluids (e.g., steam at 400°C), the long neck acts as a flexible beam, absorbing thermal expansion without transferring excessive stress to the weld joint. In a German power plant case study, YULONG's DIN 2633 flanges reduced weld stress by 42% compared to short-neck alternatives, extending service life from 8 to 15+ years.

• Vibration-Induced Fatigue: In compressor stations or pump lines, the neck's geometry dampens mechanical vibrations. The neck's length (H1/H2 dimensions per DIN 2633) acts as a lever, distributing cyclic loads over a larger area. This feature proved critical in an Arabian Gulf refinery, where DIN 2633 flanges withstood 2 million+ vibration cycles without failure, outperforming standard flanges by 300%.

Design Parameters: How DIN 2633 Flange Sets the Standard

YULONG's DIN flange adhere to precise design norms that maximize stress buffering:

• Neck Taper Ratio: The 1:4 taper from flange hub to pipe OD (as per DIN 2633) creates a gradual cross-sectional change, minimizing stress concentration. Finite element analysis (FEA) shows this design reduces stress peaks by 60% compared to abrupt transitions in non-DIN flanges.

• Welding Bevel Geometry: The 37.5° bevel angle ensures full-penetration welds, integrating the neck and pipe into a homogenous structure. YULONG's TIG welding with ER70-S6 filler metal achieves 99.9% fusion, as verified by radiographic testing (RT) to DIN EN 1435 standards.

Material Selection of DIN 2633 Flange: Matching Strength to Stress Demands

YULONG's DIN 2633 flanges  excel in material compatibility with high-pressure environments:

1. Carbon Steel for Industrial Might

• Grades like P265GH and S355JR (compliant with DIN EN 10222-2) offer tensile strengths up to 510 MPa. In a Russian natural gas pipeline operating at 80 bar, these flanges maintained integrity during pressure surges, while cheaper alternatives failed within a year.

2. Stainless Steel for Corrosion Resilience

• 316L stainless steel variants (DIN EN 10088-2) resist chloride-induced stress corrosion cracking. A Norwegian offshore platform using these flanges in seawater systems saw zero failures in 10 years, compared to frequent replacements with carbon steel flanges.

3. Alloy Steel for High-Temperature Stability

• P91 alloy steel (DIN EN 10216-2) retains 80% of its yield strength at 550°C, making it ideal for supercritical power plants. YULONG's heat-treated flanges passed 10,000-hour creep tests, meeting DIN EN 13480-3 requirements.

YULONG Steel: Engineering Excellence in Different Flange Types

As a specialist in different flange types, YULONG elevates DIN 2633 performance through:

1. Precision Forging Processes

• Closed-die forging creates a uniform grain flow in the neck, enhancing fatigue resistance. Compared to cast flanges, YULONG's forged DIN 2633 flanges show 35% higher impact toughness (Charpy V-notch ≥40J at 20°C).

2. Advanced Quality Control

• Every flange undergoes:
  • Ultrasonic testing (UT) to detect internal flaws
  • Hydrostatic testing at 1.5x working pressure (e.g., 150 bar for PN100 flanges)
  • Hardness testing to ensure material consistency

3. Global Compliance Expertise

• Dual certification to DIN EN 1092-1 and ASME B16.5 allows seamless integration in international projects. A China-Europe gas pipeline used YULONG's dual-standard flanges to avoid adapter costs, saving €1.2 million in a single segment.

In industries where piping systems are the lifelines of operations, the DIN 2633 welding neck flange's long neck design isn't just a feature—it's a necessity. YULONG Steel's mastery of this design, combined with premium materials and rigorous quality control, ensures that each DIN 2633 flange serves as a reliable stress buffer, protecting infrastructure, optimizing maintenance cycles, and enhancing safety.

For projects where failure is not an option, YULONG's expertise in DIN flanges and different flange types offers peace of mind—proving that in the world of high-pressure piping, the right design can make all the difference between lasting performance and costly breakdowns.
