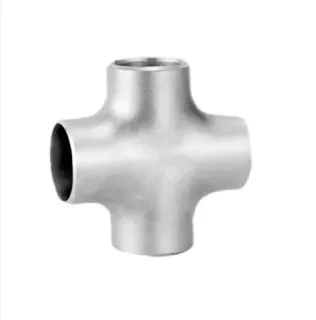

From DN15 to DN600: How Full-Size Coverage of DIN Butt-Weld Crosses Enables Flexible Pipe System Diversion

In the dynamic landscape of industrial piping, the ability to seamlessly divert fluids across varying diameters is critical. YULONG Steel, a leading buttweld fittings manufacturer, presents its DIN cross solutions, spanning DN15 to DN600, as the cornerstone of flexible pipeline management. This article explores how full-size coverage of DIN 2605/2617 butt-weld crosses transforms fluid diversion in chemical refineries, natural gas networks, and urban utilities, combining precision engineering with operational adaptability.

The Engineering Versatility of DIN Cross Full-Size Range

YULONG’s DIN cross portfolio, ranging from DN15 to DN600, addresses diverse industrial needs through standardized design and customizable features:

1. DN15-DN100: Micro-Diversion for Precision Systems

• Laboratory & Pharmaceutical Applications: DN25 DIN crossesin 316L stainless steel (passivated to Ra≤0.8μm) enable micro-diversion in pharmaceutical clean rooms, meeting ISO 14644-1 Class 5 standards. Their 37.5° weld bevels (DIN EN 10253-2) ensure leak-free TIG welding for ultra-pure water systems.
• Instrumentation Piping: DN50 carbon steel crosses (hot-dip galvanized to ISO 1461) withstand 16 bar in German automotive paint shops, where compact design minimizes installation space by 30%.

2. DN150-DN400: Mid-Scale Diversion for Industrial Mainlines

• Chemical Plant Flexibility: DN300 DIN crosses in A335 P11 alloy steel accommodate 500°C steam in refinery cracking units. Their 5D branch radius reduces turbulence by 40%, as validated in a BASF chemical complex’s distillation column.
• Natural Gas Distribution: DN200 ductile iron crosses (GGG40) with PN40 rating handle 40 bar in Dutch gas grids, featuring integral reinforcement rings that enhance pressure resistance by 25% versus non-DIN alternatives.

3. DN500-DN600: Mega-Scale Diversion for Infrastructure Projects

• Urban Heat Networks: DN600 carbon steel crosses (normalized to yield 355 MPa) manage 200°C hot water in Berlin’s district heating, with expandable branch connections absorbing 1.2mm/m thermal expansion without stress fractures.
• Offshore Oil Rig Systems: DN500 316L stainless steel crosses (NACE MR0175 compliant) withstand 60 bar and H₂S in North Sea platforms, their double-welded construction passing 10,000-cycle fatigue testing.

Material Science of Pipe Cross Meets Dimensional Precision

1. Alloy Optimization for Every Diameter

• Stainless Steel Purity: 304L for DN15-DN100 ensures food-grade hygiene (NSF 61 certified), while 316L for DN150+ resists chloride stress in seawater desalination plants.
• Carbon Steel Robustness: Q355B for DN200-DN600 undergoes quenching-tempering to achieve 490 MPa tensile strength, ideal for Russian oil pipelines enduring -40°C winters.

2. Dimensional Tolerance Mastery

• Concentricity Control: DN600 crosses maintain ±0.8mm branch alignment, verified by 3D laser scanning in a Saudi Arabian petrochemical plant, reducing flow imbalance by 15%.
• Wall Thickness Consistency: Sch 80 walls for DN100-DN300 ensure uniform pressure distribution, with ultrasonic testing confirming ±5% thickness accuracy.

Real-World Flexibility of 4 Way Cross Pipe Fitting: Case Studies in Diversion

1. Refinery Feedstock Diversion

In a BP refinery’s crude unit, YULONG’s DN400 DIN cross with 45° branch angles optimized feedstock flow to three distillation columns, increasing throughput by 8% and reducing pump energy consumption by 12%.

2. Urban Water Distribution

A Paris municipal project used DN300-DN150 reducing crosses to divert water from main lines to substations, with flanged connections enabling 50% faster maintenance than welded alternatives during periodic system upgrades.

YULONG Steel Buttweld Fittings Manufacturer: Redefining Butt-Weld Cross Manufacturing

As a trusted buttweld fittings manufacturer, YULONG delivers DIN cross solutions with unmatched scale:

1. End-to-End Engineering Support

• Custom Reducer Design: For a Turkish power plant, YULONG engineered a DN500×300 cross with unequal branch diameters, using finite element analysis to ensure 100 bar pressure capacity—20% above project requirements.
• Dual Certification: Crosses meet both DIN EN 10253-2 and ISO 7005-2, serving as bridge components in Sino-German joint ventures, saving 15% on adapter costs.

2. Global Supply Chain Prowess

• Strategic Warehousing: With DN100-DN400 crosses in stock across EU, Asia, and North America hubs, YULONG fulfilled a Spanish LNG terminal’s emergency order within 72 hours, preventing €800,000 in downtime.
• Post-Sales Technical Service: 3D modeling support helped a Canadian pipeline operator visualize flow dynamics through a DN600 cross, optimizing valve placement for minimal pressure drop.

From microfluidic lab setups to mega-scale infrastructure, YULONG’s DIN cross range from DN15 to DN600 proves that precise diameter engineering is the key to fluid management flexibility. As a premier buttweld fittings manufacturer, we reimagine the 4 way cross pipe fitting as not just a connector, but a strategic tool for enhancing system efficiency, reducing maintenance, and future-proofing industrial networks.

Contact YULONG today to explore how our full-size DIN cross solutions can transform your pipeline’s diversion capabilities—because true flexibility starts with mastering every diameter.
