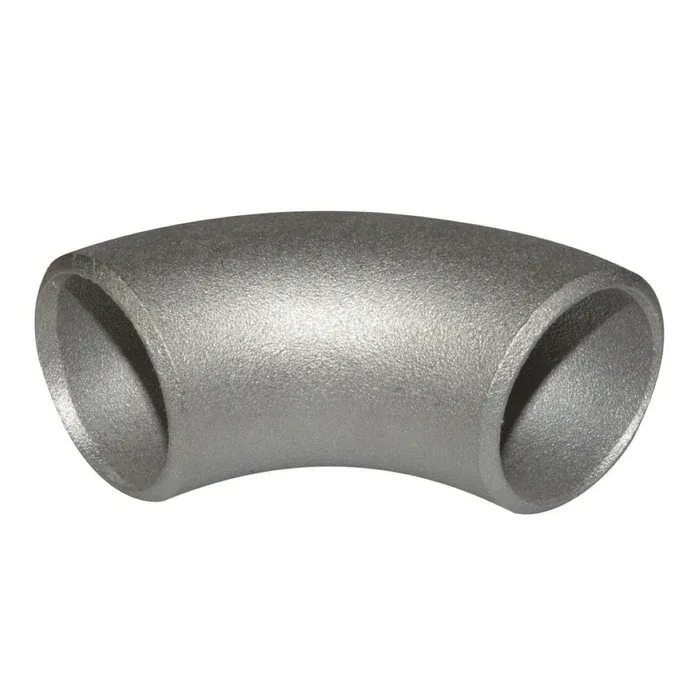

SS 304 Elbows – Long Radius

SS 304 long - radius elbows are crafted from top - grade stainless steel 304. They provide great corrosion resistance and mechanical strength. With a long - radius design, they minimize flow resistance, making them suitable for fluid and gas piping systems where smooth flow is crucial.

ទាក់ទងឥឡូវនេះ ទាញយក PDF

SPECIFICATION

Shape	កែងដៃ
Size Range	1/2" - 48" / DN15 - 1219
Thickness Schedule	SCH 10,SCH 10S, SCH 20, SCH 40,SCH 40S, STD, XS,SCH 80, SCH 80S, SCH 100, SCH 120, SCH 160, XXS
China Standard	GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409
America Standard	ANSI / ASME B16.9 / MSS SP 43
apan Standard	JIS B2311/2312/2313
Europe Standard	EN10253
Carbon Steel	Q235, 20#, 35#, 45#, 20G,ASTM A234 WPB/WPC
Low Temp Carbon Steel	Q345B, 16Mn, ASTM A420 WPL6
Pipeline Steel	ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel	ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel	ASTM A403 WP304/304L/304H, 316/316L, 310S, 321, 317,347,904L
Duplex Stainless Steel	ASTM A815 S32205, S31803, 32750, 32760
